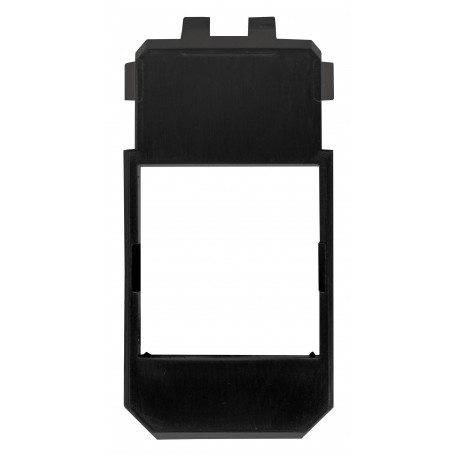

NIESSEN 2CLA201610A1001 2CLA201610A1001 2016.1 NIESSEN Soporte para sistema Sistimax View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CLA201610A1001 2016.1 NIESSEN Soporte para sistema Sistimax

2CLA201610A1001

2016.1

NIESSEN

10 Pcs.

Soporte para sistema Sistimax Support for Sistimax system Insert for For data connection housing 1 gang - Platform 8100

Automation > Insert/cover for communication technology
Flush-mounting series

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 2CLA201610A1001 2016.1 NIESSEN Soporte para sistema Sistimax from Niessen functions as a specialized adapter bracket designed to integrate proprietary cabling inserts into standard wall frames. Technicians utilize such adapters to ensure physical compatibility between different manufacturer modular ecosystems.

Pricing, availability, and lead times are confirmed per enquiry through an RFQ.

  • Instructions and Manuals: 9AKK10103A5108
  • Mounting Type: Flush-mounted
  • Type of Fastening: Engage (Snap)
  • Ambient Air Temperature: Operation -5 ... +35 °C
  • Degree of Protection: IP20
  • Data Sheet, Technical Information: 9AKK10103A5108
  • Application: For data connection housing
  • Type of Indicator: Without indication field
  • Outlet Orientation: Straight
  • Accessories Available: Yes
  • Number of Batteries: 0
  • Design Range: Platform 8100
  • Product Net Width: 20 mm
  • Product Net Height: 39 mm
  • Product Net Depth / Length: 31 mm
  • Product Net Weight: 2 g

More info

▲
Installation
Instructions and Manuals9AKK10103A5108
Mounting TypeFlush-mounted
Type of FasteningEngage (Snap)
Environmental
Ambient Air TemperatureOperation -5 ... +35 °C
Storage -5 ... +50 °C
Degree of ProtectionIP20
Technical
Data Sheet, Technical Information9AKK10103A5108
ApplicationFor data connection housing
Type of IndicatorWithout indication field
Outlet OrientationStraight
Accessories AvailableYes
Number of Batteries0
Design
Design RangePlatform 8100
Alba
Sky Niessen
Zenit
Vega
Dimensions
Product Net Width20 mm
Product Net Height39 mm
Product Net Depth / Length31 mm
Product Net Weight2 g
Material Compliance
RoHS Declaration2CLC201610A1001
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE CategoryProduct Not in WEEE Scope
WEEE B2C / B2BBusiness To Consumer
Certificates and Declarations
EU Data Act Applicability and ComplianceNot Applicable
External Classifications and Standards
ETIM 9EC000018 - Insert/cover for communication technology
ETIM 10EC000018 - Insert/cover for communication technology
UNSPSC39121406
