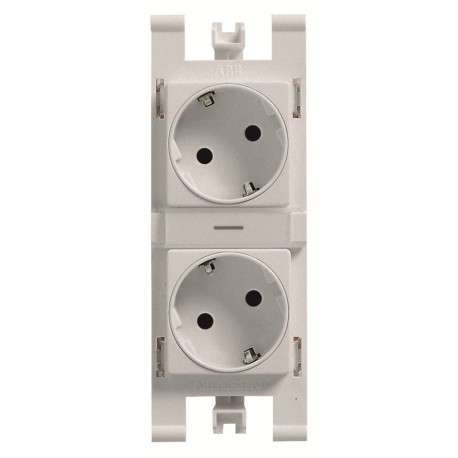

2CLA108800T1301 T1088 PL NIESSEN B. enchufe schuko doble PL
2CLA108800T1301
T1088 PL
NIESSEN
5 Pcs.
B. enchufe schuko doble PL
B. Double PL schuko plug
Workstation Protective contact (SCHUKO) Without imprint Silver - Zenit
Automation > Socket outlet
Flush-mounting series
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Niessen 2CLA108800T1301 is a double Schuko socket module designed for snap-in mounting within modular frame systems. Dual-outlet configurations efficiently double the available plug-in capacity within standard wall-box footprints.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Mounting Type: Module frame
- Type of Fastening: Engage (Snap)
- Ambient Air Temperature: Operation -5 ... +35 °C
- Degree of Protection: IP21
- Data Sheet, Technical Information: 9AKK10103A5108
- Number of Phases: 2-phase
- Connection Type: Screw Clamp
- Socket Outlet Type: Protective Contact (SCHUKO)
- Number of Batteries: 0
- Rated Voltage (U r ): 250 V
- Rated Current (I n ): 16 A
- Frequency ( f ): 50 … 60 Hz
- Power Supply Type: Safety Power Supply (Green)
- Design Range: Zenit
- Surface Finishing: Decor
- Material: Plastic
More info
▲| Installation | |
|---|---|
| Mounting Type | Module frame |
| Type of Fastening | Engage (Snap) |
| Environmental | |
| Ambient Air Temperature | Operation -5 ... +35 °C |
| Storage -5 ... +50 °C | |
| Degree of Protection | IP21 |
| Technical | |
| Data Sheet, Technical Information | 9AKK10103A5108 |
| Number of Phases | 2-phase |
| Connection Type | Screw Clamp |
| Socket Outlet Type | Protective Contact (SCHUKO) |
| Number of Batteries | 0 |
| Electrical | |
| Rated Voltage (Ur) | 250 V |
| Rated Current (In) | 16 A |
| Frequency (f) | 50 … 60 Hz |
| Power Supply Type | Safety Power Supply (Green) |
| Design | |
| Design Range | Zenit |
| Surface Finishing | Decor |
| Matt | |
| Material | Plastic |
| Thermoplastic | |
| Legend | Without imprint |
| Label Space Provided | Without Label Space |
| Color | Silver |
| Number of Gangs | 2-gang |
| Number of Modules | 3 |
| Dimensions | |
| Product Net Width | 55 mm |
| Product Net Height | 150 mm |
| Product Net Depth / Length | 294.000 mm |
| Product Net Weight | 0.17 kg |
| Material Compliance | |
| RoHS Declaration | 2CLC108800T1301 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Declaration | 9AKK108467A7464 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20230816 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Certificates and Declarations | |
| EU Data Act Applicability and Compliance | Not Applicable |
| External Classifications and Standards | |
| ETIM 9 | EC000125 - Socket outlet |
| ETIM 10 | EC000125 - Socket outlet |
