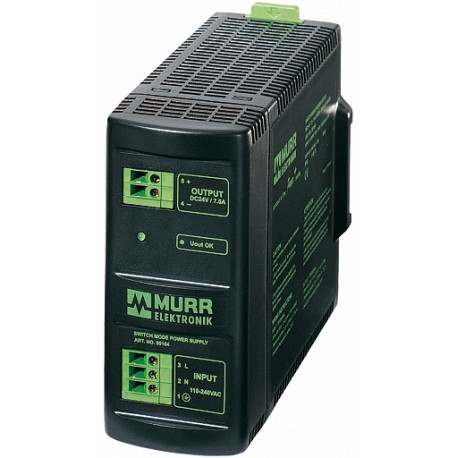

85164 MURRELEKTRONIK MCS-B POWER SUPPLY 1-PHASE,
85164
85164
MURRELEKTRONIK
1 unit
Automation > Power supplies
Power supplies
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The 85164 Murrelektronik MCS-B power supply 1-phase functions as a dependable switched-mode unit that converts single-phase AC input into a regulated DC output for standard control panel loads. Industrial applications rely on these units to supply stable operating voltage to various automation devices and relay circuits. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Art.No.: 85164
- Weight: 0.7 kg
More info
▲| Art.No.: | 85164 |
| Weight: | 0.7 kg |
OUTPUT: 24 V DC +3/-1%
Current: 7.5 A
| Input voltage | 100...265 V AC |
|---|---|
| Input current | 2.9 A (115 V AC); 1.6 A (230 V AC) |
| Inrush current after 1 ms | max. 37 A |
| Primary fusing external | max. 10 A |
| Frequency | 50...60 Hz |
| Standards | EN 60950-1, EN 61204-3, EN 55011 A |
|---|---|
| Relative humidity | 5...95%, no condensation |
| Efficiency | 87% |
| Mounting method | DIN-rail mountable TH35 (EN 60715) |
| Dimensions H × W × D | 115×54×145 mm |
| Temperature range | -25...+40 °C, ...+50 °C derating (storage temperature -25...+85 °C) |
| Output voltage | 24 V DC (SELV), ±1%; 22...28 V adjustable |
|---|---|
| Output current | 7.5 A (+40 °C), 6 A (+55 °C) |
| Mains failure bridging time | min. 14 ms (115 V AC); min. 80 ms (230 V AC) |
| Ripple | max. 20 mV eff/rms |
| Spikes | max. 100 mV ss/pp |
| Unit protection | Short-circuit and overload protected |
| LED display | LED (green) for output voltage |
| Parallel usage/serial usage | max. 5 units/max. 2 units |
| country of origin | CZ |
|---|---|
| customs tariff number | 85044090 |
| EAN | 4048879080361 |
| eClass | 27049002 |
| Packaging unit | 1 |
