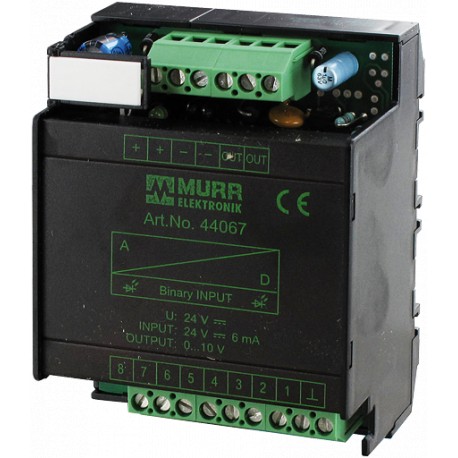

MURRELEKTRONIK 44067 44067 MURRELEKTRONIK D/A-CONVERTER 8-BIT OUTPUT 0 ... 10V View larger
Images are for illustrative purposes only. Please refer to data sheet for details

44067 MURRELEKTRONIK D/A-CONVERTER 8-BIT OUTPUT 0 ... 10V

44067

44067

MURRELEKTRONIK

1 unit


Automation > Relays, converters, switches
Relays, converters, switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
IN: 8 Bit - OUT: 0-10 VDC
Art.No.: 44067
Alternative product: Product Comparison
D/A converter
8 Bit
0...10 V
Input and output galvanically separated
Input
Input currentmax. 10 mA/Bit
Input signal0...30 V DC (with LED display)
Technical Data
Operating voltage21...30 V DC, smoothed (with LED)
Operating current100 mA (idle load), max. 150 mA (full load)
Tolerance±1%
Release input Elog 1 ≥ 16 V, log 0 ≤ 6 V
General data
Test isolation voltage2.5 kV
Mounting methodDIN-rail mountable (EN 60715)
Temperature range0...+50 °C
Dimensions H × W × D65×67.5×86 mm
Output
Output currentmax. 40 mA (0...10 V DC); max. 20 mA (0...20 mA), 4...20 mA
Description
Functional descriptionThe maximum output signal of converters with voltage output can be adjusted to the operating voltage minus 2 V. The outputs are short-circuit protected and overload protected due to internal current limiting.
Commercial data
country of originCZ
customs tariff number85437090
EAN4048879028639
eClass27210990
Packaging unit1
