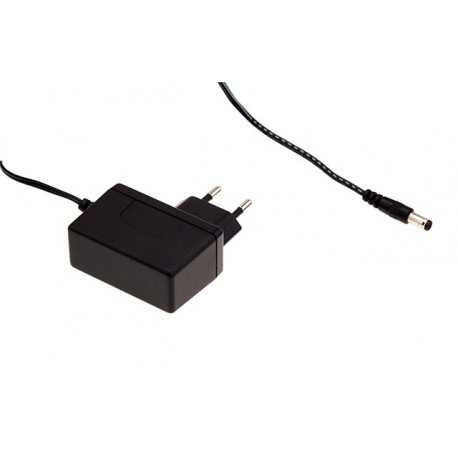

MEANWELL SGA12E12-P1J SGA12E12-P1J MEANWELL AC-DC Slim wall mounted adaptor, Input range 90-264VAC with 2 pole Euro plug, Output 1.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SGA12E12-P1J MEANWELL AC-DC Slim wall mounted adaptor, Input range 90-264VAC with 2 pole Euro plug, Output 1..

SGA12E12-P1J

SGA12E12-P1J

MEANWELL

1 unit


Automation > ADAPTERS
ADAPTERS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Meanwell AC-DC Slim wall mounted adaptor delivers reliable power conversion in a streamlined enclosure suitable for tight spaces near standard electrical outlets. Common deployment scenarios involve powering peripheral networking hardware, measurement instruments, and localized control electronics. Please note that pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Name: SGA12E12-P1J
  • Country of Origin: Taiwan
  • Manufacturer: MEAN WELL
  • Product type: Power supply AC/DC
  • Format: Wall
  • Subformato: Pin AC European
  • Applications: Industrial, Telecommunications
  • Series: SGA12
  • Warranty (Years): 3,00
  • Height (mm): 39.70
  • Width (mm): 27.40
  • Long/Background: 62.20
  • Type of Entry CA: Single-phase
  • AC input Min: 90,00
  • AC input Max: 264,00
  • Input frequency: 50 Hz, 60 Hz

More info

▲
NameSGA12E12-P1J
Long Description

Wall adapter with input plug for Europe.

Feeder for connection to a wall outlet.

Range of universal input90-264vac47-63Hz.

Output voltage12vdc.

Output intensity1A. Range of output current 0-1A according to demand load.

Power:12W.

Efficiency typical:83%.

Class ll without the taking of land.

Consumption without load<0,075 W.

Working temperature: from-20up+60 ° Cof ambient temperature. Consult the technical data sheet to see the curves of drift.

Dimensions (Length x Width x Height) [mm]:62.2 x to 27.4 x 39.5.

3 years of warranty.

Manufacturer: MEAN WELL.

The series LMS are commuting sources in the format of a wall with input connector and european connector type output Jack 5.5 x 2.1 x 11 mm (outer diameter, inner and length), and center positive.

The series SGA12 have a low consumption without load, only 0,0075 W and comply with the latest requirements of energy efficiency (NivelVl).

Country of OriginTaiwan
ManufacturerMEAN WELL
Product typePower supply AC/DC
FormatWall
SubformatoPin AC European
ApplicationsIndustrial, Telecommunications
SeriesSGA12
Warranty (Years)3,00
Height (mm)39.70
Width (mm)27.40
Long/Background62.20
Type of Entry CASingle-phase
AC input Min90,00
AC input Max264,00
Input frequency50 Hz, 60 Hz
Input connectorEuropean Plug
Output voltage12,00
Power (W)12,00
Peak Power (W)Twelve
Output connectorP1J Tunnig Fork 5.5 x 2.1 x 11. C+
Isolation (V)4.242,00
ApprovalsCE, TÜV
