View larger

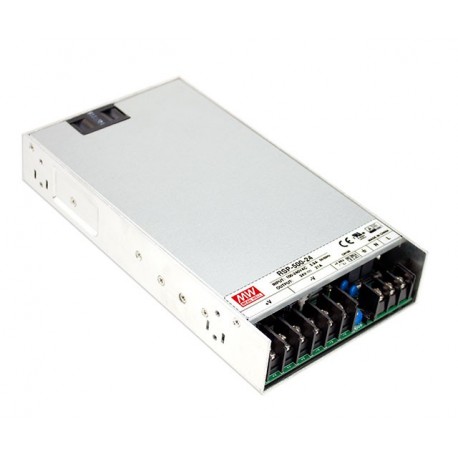

RSP-500-12 MEANWELL AC-DC Single Output Enclosed power supply, Output 12VDC Single Output / 41.7A, PFC, forc..
RSP-500-12
RSP-500-12
MEANWELL
1 unit
Automation > PFC
RSP
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Name | RSP-500-12 |
|---|---|
| Long Description | Switch mode power supply. Format in box. Range of universal Input85-264vac47-63Hz. Output voltage12vdc. Adjustable by potentiometer (10-13,2 Dc). Output intensity41.7 A. Range of output current 0-41,7 according To the demand load. Factor Corrector, Power>0,95. Power:500,4 W. Efficiency typical:88%. Working temperature: from-30up+70 ° Cof ambient temperature. Consult the technical data sheet to see the curves of drift. Dimensions (Length x Width x Height) [mm]:230 x 127 x to 40.5. 3 years of warranty. Manufacturer: MEAN WELL. The series RSP are sources switched low profile (40.5 mm or 1U) with correction factor power active. Include possibility of performing a power on/off remote and a LED power indicator. |
| Country of Origin | China |
| Stock | Yes |
| Manufacturer | MEAN WELL |
| Product type | Power supply AC/DC |
| Format | Box |
| Applications | Industrial, Telecommunications |
| Series | RSP-500 |
| State | Recommended Model |
| Warranty (Years) | 3,00 |
| Height (mm) | 40.50 |
| Width (mm) | 127.00 |
| Long/Background | 230.00 |
| Type of Entry CA | Single-phase |
| AC input Min | 85,00 |
| AC input Max | 264,00 |
| Input frequency | 50 Hz, 60 Hz |
| Input connector | Screw-Type |
| Output voltage | 12,00 |
| Power (W) | 500,40 |
| Peak Power (W) | 500.4 |
| Output connector | Screw-Type |
| Fan | Yes |
| Isolation (V) | 3.000,00 |
| Approvals | CE, UL |
