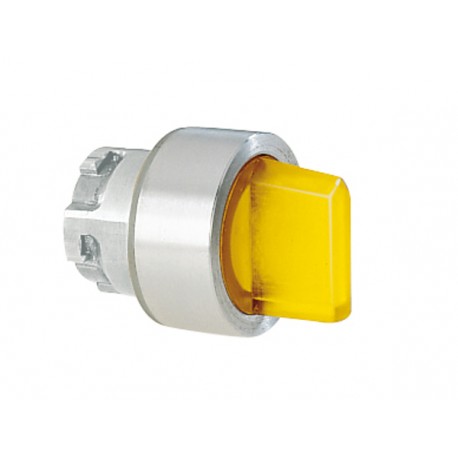

LOVATO ELECTRIC 8LM2TSL1205 8LM2TSL1205 LM2TSL1205 LOVATO ILLUMINATED SELECTOR SWITCH ACTUATOR, Ø22MM 8LM METAL SERIES, 2 POSITION, 0 1... View larger
Images are for illustrative purposes only. Please refer to data sheet for details

8LM2TSL1205 LM2TSL1205 LOVATO ILLUMINATED SELECTOR SWITCH ACTUATOR, Ø22MM 8LM METAL SERIES, 2 POSITION, 0 1...

8LM2TSL1205

LM2TSL1205

LOVATO ELECTRIC

1 Pcs.

ILLUMINATED SELECTOR SWITCH ACTUATOR, Ø22MM 8LM METAL SERIES, 2 POSITION, 0 - 1. YELLOW Metallic Light Selector 2 positions "0-1" Fixed Yellow Illuminated selector switch actuator, Ø22mm 8LM series metal, 2 position, 0 - 1. Yellow

Automation > Front element for selector switch
Pushbuttons and selector switches - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Lovato Electric illuminated selector switch actuator part number 8LM2TSL1205 serves as an essential interface device for industrial control systems. Panel builders integrate standard 22mm actuators into enclosures to give operators direct mechanical control over motor starters, process lines, and automated workflows. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (NEMA) (EF011959): 4X
  • Colour control element (EF007167): Yellow
  • Colour indicator light cap (EF007165): Yellow
  • Type of control element (EF006976): Short thumb-grip
  • Material front ring (EF005972): Metal
  • Degree of protection (IP), front side (EF003118): IP65
  • Switching function latching (EF007447): No
  • With front ring (EF006014): Yes
  • Spring-return (EF001407): Yes
  • Suitable for lighting (EF001142): Yes
  • Height opening (EF004778): 22 mm
  • Width opening (EF004565): 22 mm
  • Number of switch positions (EF000231): 2
  • Hole diameter (EF000079): 22 mm

More info

▲

8LM2TSL1205

Illuminated selector switch actuator, Ø22mm 8LM series metal, 2 position, 0 - 1. Yellow

Technical specifications

Type of actuator:
0 - 1
Colour:
Yellow
Order code8LM2TSL1205
Weight [g]24
Qty. per package10
Multiple qty. of packs per order10
Package dimensions [mm]150X060X048
Volume [cm³]43.2
Bar code [EAN13]8013975042298
HS Code85365080
