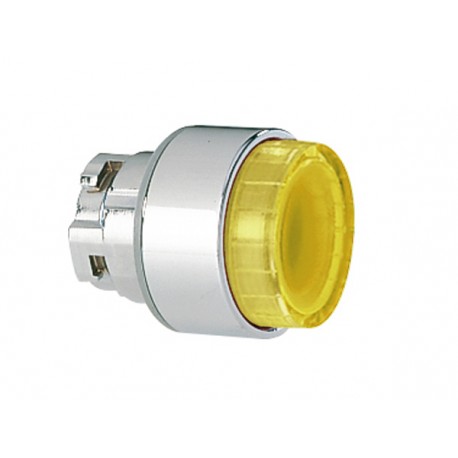

8LM2TBL205 LM2TBL205 LOVATO ILLUMINATED BUTTON ACTUATOR, SPRING RETURN, Ø22MM 8LM METAL SERIES, EXTENDED, YE..
8LM2TBL205
LM2TBL205
LOVATO ELECTRIC
1 Pcs.
Automation > Front element for push button
Pushbuttons and selector switches - LOVATO ELECTRIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Lovato Electric 8LM2TBL205 illuminated pushbutton actuator combines metal framing with a bright yellow extended lens to provide clear operational feedback on machinery control panels. These devices support reliable momentary command functions. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Degree of protection (NEMA), front side (EF011961): 4X
- Construction type lens (EF006253): Round
- Material front ring (EF005972): Metal
- Degree of protection (IP), front side (EF003118): IP65
- Colour button (EF000190): Yellow
- Switching function latching (EF007447): No
- With front ring (EF006014): Yes
- With protective cover (EF005500): No
- Labelled (EF001537): No
- Spring-return (EF001407): Yes
- Suitable for lighting (EF001142): Yes
- Height opening (EF004778): 22 mm
- Width opening (EF004565): 22 mm
- Number of command positions (EF001372): 1
- Hole diameter (EF000079): 22 mm
More info
▲8LM2TBL205
Illuminated button actuator, spring return, Ø22mm 8LM series metal, extended, yellow
Technical specifications
- Colour:
- Yellow
| Order code | 8LM2TBL205 |
|---|---|
| Weight [g] | 35 |
| Qty. per package | 10 |
| Multiple qty. of packs per order | 10 |
| Package dimensions [mm] | 150X060X038 |
| Volume [cm³] | 34.2 |
| Bar code [EAN13] | 8013975041741 |
| HS Code | 85365080 |
