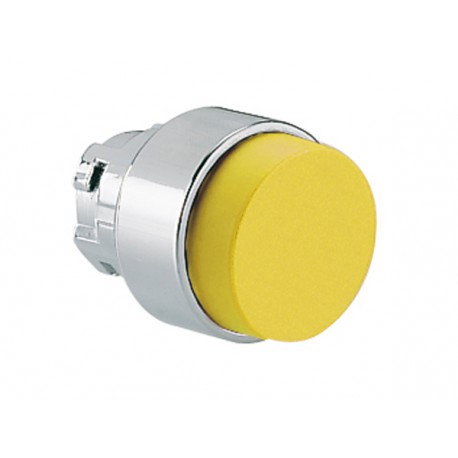

LOVATO ELECTRIC 8LM2TB205 8LM2TB205 LM2TB205 LOVATO PUSHBUTTON ACTUATOR, SPRING RETURN, Ø22MM 8LM METAL SERIES, EXTENDED, YELLOW View larger
Images are for illustrative purposes only. Please refer to data sheet for details

8LM2TB205 LM2TB205 LOVATO PUSHBUTTON ACTUATOR, SPRING RETURN, Ø22MM 8LM METAL SERIES, EXTENDED, YELLOW

8LM2TB205

LM2TB205

LOVATO ELECTRIC

1 Pcs.

PUSHBUTTON ACTUATOR, SPRING RETURN, Ø22MM 8LM METAL SERIES, EXTENDED, YELLOW Yellow Protruding Metal Pushbutton Pushbutton actuator, spring return, Ø22mm 8LM series metal, extended, yellow

Automation > Front element for push button
Pushbuttons and selector switches - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

8LM2TB205 LM2TB205 LOVATO PUSHBUTTON ACTUATOR, SPRING RETURN, Ø22MM 8LM METAL SERIES, EXTENDED, YELLOW is an extended spring-return pushbutton actuator used in automation panels for direct operator control functions. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (NEMA), front side (EF011961): 4X
  • Construction type lens (EF006253): Round
  • Material front ring (EF005972): Metal
  • Degree of protection (IP), front side (EF003118): IP65
  • Colour button (EF000190): Yellow
  • Switching function latching (EF007447): No
  • With front ring (EF006014): Yes
  • With protective cover (EF005500): No
  • Labelled (EF001537): No
  • Spring-return (EF001407): Yes
  • Suitable for lighting (EF001142): No
  • Height opening (EF004778): 22 mm
  • Width opening (EF004565): 22 mm
  • Number of command positions (EF001372): 1
  • Hole diameter (EF000079): 22 mm

More info

▲

8LM2TB205

Pushbutton actuator, spring return, Ø22mm 8LM series metal, extended, yellow

Technical specifications

Colour:
Yellow
Order code8LM2TB205
Weight [g]35.1
Qty. per package10
Multiple qty. of packs per order10
Package dimensions [mm]150X060X038
Volume [cm³]34.2
Bar code [EAN13]8013975040423
HS Code85365080
