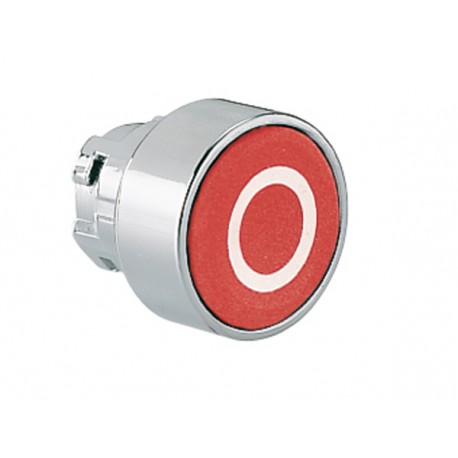

LOVATO ELECTRIC 8LM2TB1168 8LM2TB1168 LM2TB1168 LOVATO PUSHBUTTON ACTUATOR, SPRING RETURN, WITH SYMBOL, Ø22MM 8LM METAL SERIES, FLUSH, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

8LM2TB1168 LM2TB1168 LOVATO PUSHBUTTON ACTUATOR, SPRING RETURN, WITH SYMBOL, Ø22MM 8LM METAL SERIES, FLUSH, ..

8LM2TB1168

LM2TB1168

LOVATO ELECTRIC

1 Pcs.

PUSHBUTTON ACTUATOR, SPRING RETURN, WITH SYMBOL, Ø22MM 8LM METAL SERIES, FLUSH, START / WHITE White Metal Grade Button with START symbol Pushbutton actuator, spring return, with symbol, Ø22mm 8LM series metal, flush, START/White

Automation > Front element for push button
Pushbuttons and selector switches - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Lovato Electric 8LM2TB1168 metal series pushbutton actuator is designed for standard 22 mm panel cutouts, providing reliable momentary contact operation for industrial control systems. Flush white actuators allow clear integration into custom operator desk layouts.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (NEMA), front side (EF011961): 4X
  • Construction type lens (EF006253): Round
  • Material front ring (EF005972): Metal
  • Degree of protection (IP), front side (EF003118): IP65
  • Colour button (EF000190): White
  • Switching function latching (EF007447): No
  • With front ring (EF006014): Yes
  • With protective cover (EF005500): No
  • Labelled (EF001537): No
  • Spring-return (EF001407): Yes
  • Suitable for lighting (EF001142): No
  • Height opening (EF004778): 22 mm
  • Width opening (EF004565): 22 mm
  • Number of command positions (EF001372): 1
  • Hole diameter (EF000079): 22 mm

More info

▲

8LM2TB1168

Pushbutton actuator, spring return, with symbol, Ø22mm 8LM series metal, flush, START/White

Technical specifications

Colour:
White
Order code8LM2TB1168
Weight [g]34
Qty. per package10
Multiple qty. of packs per order10
Package dimensions [mm]150X060X038
Volume [cm³]34.2
Bar code [EAN13]8013975048351
HS Code85365080
