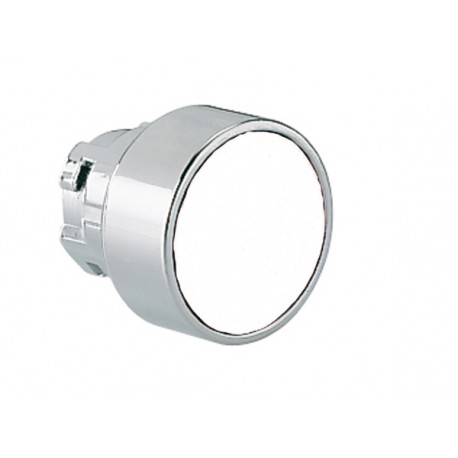

LOVATO ELECTRIC 8LM2TB108 8LM2TB108 LM2TB108 LOVATO PUSHBUTTON ACTUATOR, SPRING RETURN, Ø22MM 8LM METAL SERIES, FLUSH, WHITE View larger
Images are for illustrative purposes only. Please refer to data sheet for details

8LM2TB108 LM2TB108 LOVATO PUSHBUTTON ACTUATOR, SPRING RETURN, Ø22MM 8LM METAL SERIES, FLUSH, WHITE

8LM2TB108

LM2TB108

LOVATO ELECTRIC

1 Pcs.

PUSHBUTTON ACTUATOR, SPRING RETURN, Ø22MM 8LM METAL SERIES, FLUSH, WHITE White Metal Pushbutton Pushbutton actuator, spring return, Ø22mm 8LM series metal, flush, white

Automation > Front element for push button
Pushbuttons and selector switches - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Lovato Electric 8LM2TB108 pushbutton actuator provides an essential operator interface mechanism for controlling electrical circuits in industrial manufacturing setups. Spring-return momentary pushbuttons are widely installed on control desks to initiate transient commands like machine testing or cycle starting. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (NEMA), front side (EF011961): 4X
  • Construction type lens (EF006253): Round
  • Material front ring (EF005972): Metal
  • Degree of protection (IP), front side (EF003118): IP65
  • Colour button (EF000190): White
  • Switching function latching (EF007447): No
  • With front ring (EF006014): Yes
  • With protective cover (EF005500): No
  • Labelled (EF001537): No
  • Spring-return (EF001407): Yes
  • Suitable for lighting (EF001142): No
  • Height opening (EF004778): 22 mm
  • Width opening (EF004565): 22 mm
  • Number of command positions (EF001372): 1
  • Hole diameter (EF000079): 22 mm

More info

▲

8LM2TB108

Pushbutton actuator, spring return, Ø22mm 8LM series metal, flush, white

Technical specifications

Colour:
White
Order code8LM2TB108
Weight [g]35
Qty. per package10
Multiple qty. of packs per order10
Package dimensions [mm]150X060X038
Volume [cm³]34.2
Bar code [EAN13]8013975040362
HS Code85365080
