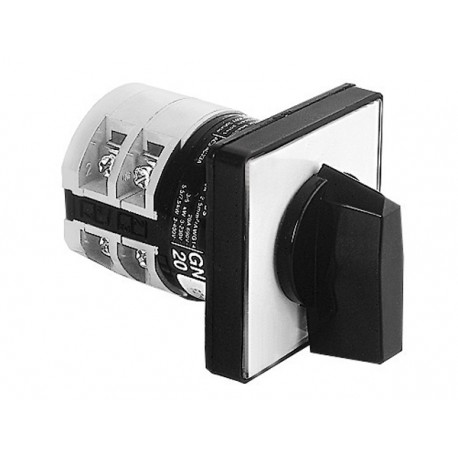

LOVATO ELECTRIC 7GN2066U 7GN2066U GN2066U LOVATO ROTARY CAM SWITCHE, GN SERIES, U VERSION, FRONT MOUNT. VOLTMETER SWITCH, FOR 3 PHASE.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

7GN2066U GN2066U LOVATO ROTARY CAM SWITCHE, GN SERIES, U VERSION, FRONT MOUNT. VOLTMETER SWITCH, FOR 3 PHASE..

7GN2066U

GN2066U

LOVATO ELECTRIC

1 Pcs.

ROTARY CAM SWITCHE, GN SERIES, U VERSION, FRONT MOUNT. VOLTMETER SWITCH, FOR 3 PHASE TO PHASE VOLTAGE AND 3 PHASE VOLTAGE READINGS - 3 WAFERS – SCHEME 66, 20A Conm. GN66 20A Voltmeter Mod. U 48x48 Rotary cam switch 7GN series, voltmeter switch for phase-neutral and phase-phase voltages 20A, for front mounting with black handle, front plate 48X48mm

Automation > Off-load switch
Rotary cam switches - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Lovato Electric 7GN2066U voltmeter switch is an essential instrumentation component enabling technicians to cycle a single measuring device across multiple phases of a electrical supply. Such rotary switches simplify monitoring tasks within complex distribution panels.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of control element: Short thumb-grip
  • Type of electrical connection of main circuit: Screw connection
  • Degree of protection (IP), front side: IP40
  • Housing material: Plastic
  • Complete device in housing: Yes
  • Suitable for intermediate mounting: No
  • Suitable for distribution board installation: Yes
  • Suitable for front mounting: Yes
  • Suitable for floor mounting: No
  • With retraction in 0-position: No
  • With zero (off) position: Yes
  • Number of poles: 6
  • Rated permanent current Iu: 20 A
  • Rated operation power at AC-3, 400 V: 5.5 kW

More info

▲

7GN2066U

Rotary cam switch 7GN series, voltmeter switch for phase-neutral and phase-phase voltages 20A, for front mounting with black handle, front plate 48X48mm

Technical specifications

Type of product:
Voltmeters and ammeters
Switching diagram:
66 - Voltmeter switch for phase-neutral and phase-phase voltages
IEC Conventional free air thermal current Ith [A]:
20
Mounting form:
U - Front mounting with black handle
Series:
7GN - round-shaped contact block
Order code7GN2066U
Weight [g]116
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]050X050X082
Volume [cm³]205
Bar code [EAN13]3850144003279
HS Code85365080

41.48 £
