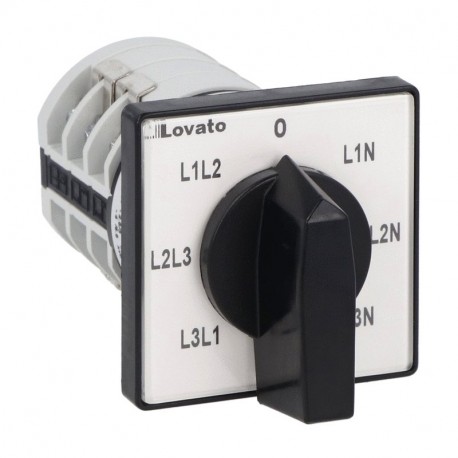

LOVATO ELECTRIC 7GN1266U 7GN1266U GN1266U LOVATO ROTARY CAM SWITCHE, GN SERIES, U VERSION, FRONT MOUNT. VOLTMETER SWITCH, FOR 3 PHASE.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

7GN1266U GN1266U LOVATO ROTARY CAM SWITCHE, GN SERIES, U VERSION, FRONT MOUNT. VOLTMETER SWITCH, FOR 3 PHASE..

7GN1266U

GN1266U

LOVATO ELECTRIC

1 Pcs.

ROTARY CAM SWITCHE, GN SERIES, U VERSION, FRONT MOUNT. VOLTMETER SWITCH, FOR 3 PHASE TO PHASE VOLTAGE AND 3 PHASE VOLTAGE READINGS - 3 WAFERS – SCHEME 66, 16A Conm. GN66 16A Voltmeter Mod. U 48x48 Rotary cam switch 7GN series, voltmeter switch for phase-neutral and phase-phase voltages 16A, for front mounting with black handle, front plate 48X48mm

Automation > Off-load switch
Rotary cam switches - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for multi-phase electrical monitoring, the Lovato Electric rotary cam switch, reference 7GN1266U, allows operators to manually select and measure voltage phases within control panels and distribution boards. Rotary switches of this type ensure safe, straightforward system diagnostics across commercial and industrial settings. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of control element (EF006976): Short thumb-grip
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Degree of protection (IP), front side (EF003118): IP40
  • Housing material (EF001596): Plastic
  • Complete device in housing (EF007317): Yes
  • Suitable for intermediate mounting (EF007264): No
  • Suitable for distribution board installation (EF007262): Yes
  • Suitable for front mounting (EF007246): Yes
  • Suitable for floor mounting (EF007243): No
  • With retraction in 0-position (EF002428): No
  • With zero (off) position (EF001416): Yes
  • Number of poles (EF001391): 6
  • Rated permanent current Iu (EF001389): 16 A
  • Rated operation power at AC-3, 400 V (EF001364): 4 kW

More info

▲

7GN1266U

Rotary cam switch 7GN series, voltmeter switch for phase-neutral and phase-phase voltages 16A, for front mounting with black handle, front plate 48X48mm

Technical specifications

Type of product:
Voltmeters and ammeters
Switching diagram:
66 - Voltmeter switch for phase-neutral and phase-phase voltages
IEC Conventional free air thermal current Ith [A]:
16
Mounting form:
U - Front mounting with black handle
Series:
7GN - round-shaped contact block
Order code7GN1266U
Weight [g]116
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]050X050X082
Volume [cm³]205
Bar code [EAN13]3850144002340
HS Code85365080

34.58 £


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
