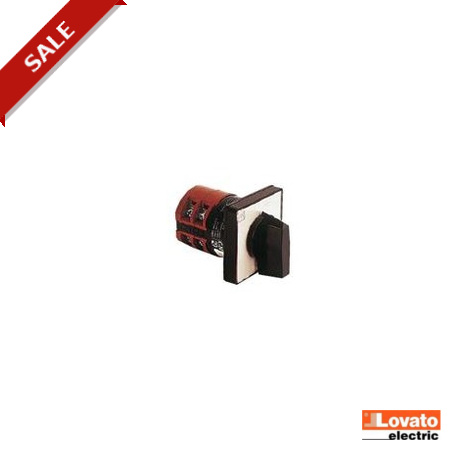

Voltmeter switch RS-ST-TR-0-RN-SN-TN 25A Model U 48x48 GN66 Conm. GN66 25A Voltmeter Mod. U 48x48 Rotary cam switch 7GN series, voltmeter switch for phase-neutral and phase-phase voltages 25A, for front mounting with black handle, front plate 48X48mm ROTARY CAM SWITCH 7GN SERIES, VOLTMETER SWITCH FOR PHASE-NEUTRAL AND PHASE-PHASE VOLTAGES 25A, FOR FRONT MOUNTING WITH BLACK HANDLE, FRONT PLATE 48X48MM

Automation > Selector switch, complete
Rotary cam switches - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Lovato Electric 7GN2566U is a voltmeter switch configured for monitoring phase-to-phase and phase-to-neutral voltages in electrical distribution panels. Voltmeter selector switches are standard electrical components that allow operators to check multiple voltage levels using a single panel meter.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of control element (EF006976): Short thumb-grip
  • Material front ring (EF005972): Plastic
  • Degree of protection (IP) (EF005474): IP40
  • Type of electric connection (EF003961): Screw connection
  • With front ring (EF006014): No
  • With light source (EF005905): No
  • Spring-return (EF001407): No
  • Suitable for lighting (EF001142): No
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 3
  • Number of contacts as normally closed contact (EF008255): 0
  • Number of switch positions (EF000231): 7

More info

▲

7GN2566U

Rotary cam switch 7GN series, voltmeter switch for phase-neutral and phase-phase voltages 25A, for front mounting with black handle, front plate 48X48mm

Technical specifications

Type of product:
Voltmeters and ammeters
Switching diagram:
66 - Voltmeter switch for phase-neutral and phase-phase voltages
IEC Conventional free air thermal current Ith [A]:
25
Mounting form:
U - Front mounting with black handle
Series:
7GN - round-shaped contact block
Order code7GN2566U
Weight [g]152
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]050X050X102
Volume [cm³]255
Bar code [EAN13]3850144002906
HS Code85365080

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
