View larger
Images are for illustrative purposes only. Please refer to data sheet for details

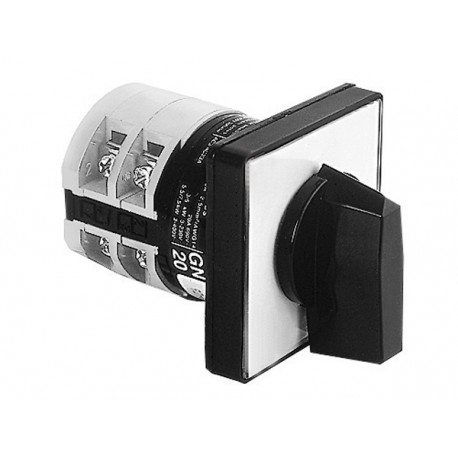

7GN1260U GN1260U LOVATO ROTARY CAM SWITCHE, GN SERIES, U VERSION, FRONT MOUNT. VOLTMETER SWITCH, FOR 1 PHASE..
7GN1260U
GN1260U
LOVATO ELECTRIC
1 Pcs.
ROTARY CAM SWITCHE, GN SERIES, U VERSION, FRONT MOUNT. VOLTMETER SWITCH, FOR 1 PHASE VOLTAGE AND 3 PHASE TO PHASE VOLTAGE READINGS3 WAFERS – SCHEME 60, 16A
Conm. GN60 16A Voltmeter Mod. U 48x48
Automation > Off-load switch
Rotary cam switches - LOVATO ELECTRIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Order code | 7GN1260U |
| Weight [g] | 100 |
| Package dimensions [mm] | 050X085X050 |
| Volume [cm³] | 212.5 |
| Bar code [EAN13] | 3850144004252 |
| HS Code | 85365080 |
| Feature Name | Feature Value |
|---|---|
| Type of control element (EF006976) | Short thumb-grip |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Degree of protection (IP), front side (EF003118) | IP40 |
| Housing material (EF001596) | Plastic |
| Model (EF000010) | Other |
| Complete device in housing (EF007317) | Yes |
| Suitable for intermediate mounting (EF007264) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Suitable for front mounting (EF007246) | Yes |
| Suitable for floor mounting (EF007243) | No |
| With retraction in 0-position (EF002428) | No |
| With zero (off) position (EF001416) | Yes |
| Number of poles (EF001391) | 6 |
| Rated permanent current Iu (EF001389) | 16 A |
| Rated operation power at AC-3, 400 V (EF001364) | 4 kW |
