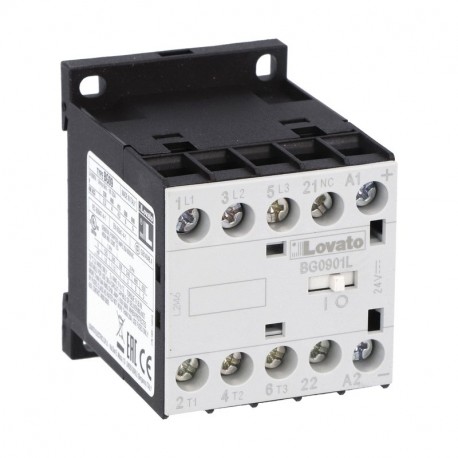

LOVATO ELECTRIC 11BG0901L048 11BG0901L048 BG0901L048 LOVATO THREE-POLE CONTACTOR, IEC OPERATING CURRENT IE (AC3) 9A, DC COIL LOW CONSUMPT.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

11BG0901L048 BG0901L048 LOVATO THREE-POLE CONTACTOR, IEC OPERATING CURRENT IE (AC3) 9A, DC COIL LOW CONSUMPT..

11BG0901L048

BG0901L048

LOVATO ELECTRIC

1 Pcs.

THREE-POLE CONTACTOR, IEC OPERATING CURRENT IE (AC3) = 9A, DC COIL LOW CONSUMPTION, 48VDC, 1NC AUXILIARY CONTACT Minicont. 3P 9A AC3 1 aux NC 48V DC low consumption Three-pole contactor, IEC operating current Ie (AC3) = 9A, DC coil low consumption, 48VDC, 1NC auxiliary contact

Automation > Power contactor, AC switching
Industrial Contactors and Accessories - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

11BG0901L048

Three-pole contactor, IEC operating current Ie (AC3) = 9A, DC coil low consumption, 48VDC, 1NC auxiliary contact

Technical specifications

Type of product:
Contactors
Number of poles:
3
Type of coil:
DC coil low consumption
Rated coil voltage [V]:
48
IEC operating current Ith (AC1) [A]:
20
IEC operating current and power Ie (AC3) 400V [A/Kw]:
9A / 4.0Kw
UL/CSA horsepower ratings 480V [HP]:
5
Type of built-in auxiliary contacts:
1NC
Type of mounting:
Screw / DIN rail 35mm
Order code11BG0901L048
Weight [g]200
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]060X045X060
Volume [cm³]162
Bar code [EAN13]8013975081280
HS Code85365080

61.09 £


ETIM for 11BG0901L048 Low-voltage industrial controls and switchgear (EC000066)
Feature Name Feature Value
Voltage type for actuating (EF008242) DC
Type of electrical connection of main circuit (EF006819) Screw connection
Rated control supply voltage DC (EF003980) 48 V
Modular version (EF001126) No
Rated operation current Ie at AC-4, 400 V (EF008495) 4 A
Rated operation current Ie at AC-1, 400 V (EF001393) 20 A
Rated operation current Ie at AC-3, 400 V (EF001392) 9 A
Number of auxiliary contacts as normally closed contact (EF001377) 1
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of normally closed contacts as main contact (EF001375) 0
Number of normally open contacts as main contact (EF001374) 3
Rated operation power at AC-3, 400 V (EF001364) 4 kW
