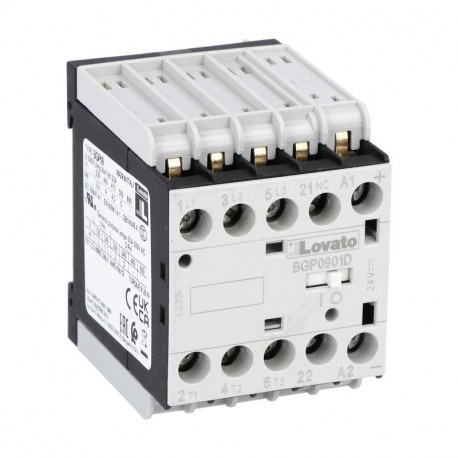

LOVATO ELECTRIC 11BGP0901D024 11BGP0901D024 BGP0901D024 LOVATO THREE-POLE CONTACTOR, IEC OPERATING CURRENT IE (AC3) 9A, DC COIL, 24VDC, 1N.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

11BGP0901D024 BGP0901D024 LOVATO THREE-POLE CONTACTOR, IEC OPERATING CURRENT IE (AC3) 9A, DC COIL, 24VDC, 1N..

11BGP0901D024

BGP0901D024

LOVATO ELECTRIC

1 Pcs.

THREE-POLE CONTACTOR, IEC OPERATING CURRENT IE (AC3) = 9A, DC COIL, 24VDC, 1NC AUXILIARY CONTACT, REAR PCB SOLDER PIN Minicont 3P 9A AC3 1NC 24V DC Printed Circuit Three-pole contactor, IEC operating current Ie (AC3) = 9A, DC coil, 24VDC, 1NC auxiliary contact, rear PCB solder pin

Automation > Power contactor, AC switching
Industrial Contactors and Accessories - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

11BGP0901D024

Three-pole contactor, IEC operating current Ie (AC3) = 9A, DC coil, 24VDC, 1NC auxiliary contact, rear PCB solder pin

Technical specifications

Type of product:
Contactors
Number of poles:
3
Type of coil:
DC coil
Rated coil voltage [V]:
24
IEC operating current Ith (AC1) [A]:
20
IEC operating current and power Ie (AC3) 400V [A/Kw]:
9A / 4.0Kw
UL/CSA horsepower ratings 480V [HP]:
5
Type of built-in auxiliary contacts:
1NC
Type of mounting:
Screw / DIN rail 35mm
Order code11BGP0901D024
Weight [g]243
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]060X045X070
Volume [cm³]189
Bar code [EAN13]8013975144923
HS Code85365080

65.75 £


ETIM for 11BGP0901D024 Low-voltage industrial controls and switchgear (EC000066)
Feature Name Feature Value
Voltage type for actuating (EF008242) DC
Type of electrical connection of main circuit (EF006819) PCB connection
Rated control supply voltage DC (EF003980) 24 V
Modular version (EF001126) No
Rated operation current Ie at AC-4, 400 V (EF008495) 4 A
Rated operation current Ie at AC-1, 400 V (EF001393) 20 A
Rated operation current Ie at AC-3, 400 V (EF001392) 9 A
Number of auxiliary contacts as normally closed contact (EF001377) 1
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of normally closed contacts as main contact (EF001375) 0
Number of normally open contacts as main contact (EF001374) 3
Rated operation power at AC-3, 400 V (EF001364) 4 kW
