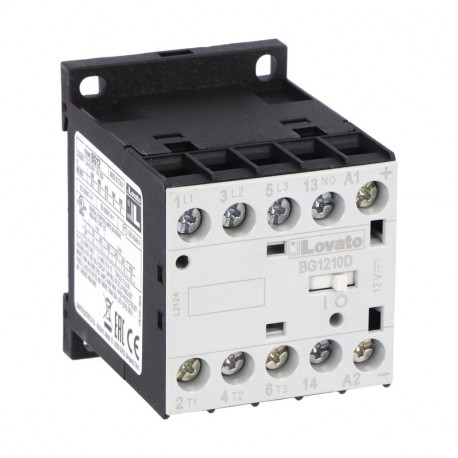

LOVATO ELECTRIC 11BG1210D024 11BG1210D024 BG1210D024 LOVATO THREE-POLE CONTACTOR, IEC OPERATING CURRENT IE (AC3) 12A, DC COIL, 24VDC, 1NO.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

11BG1210D024 BG1210D024 LOVATO THREE-POLE CONTACTOR, IEC OPERATING CURRENT IE (AC3) 12A, DC COIL, 24VDC, 1NO..

11BG1210D024

BG1210D024

LOVATO ELECTRIC

1 Pcs.

THREE-POLE CONTACTOR, IEC OPERATING CURRENT IE (AC3) = 12A, DC COIL, 24VDC, 1NO AUXILIARY CONTACT Minicont. 3P 12A AC3 1 aux NA 24V DC Three-pole contactor, IEC operating current Ie (AC3) = 12A, DC coil, 24VDC, 1NO auxiliary contact

Automation > Power contactor, AC switching
Industrial Contactors and Accessories - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for reliable DC-actuated control, the 11BG1210D024 Lovato Electric three-pole contactor manages motor circuits and auxiliary loads in industrial automation systems. It delivers dependable switching performance in compact panel layouts.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type for actuating: DC
  • Type of electrical connection of main circuit: Screw connection
  • Rated control supply voltage DC: 24 V
  • Modular version: No
  • Rated operation current Ie at AC-4, 400 V: 4.8 A
  • Rated operation current Ie at AC-1, 400 V: 20 A
  • Rated operation current Ie at AC-3, 400 V: 12 A
  • Number of normally open contacts as main contact: 3
  • Rated operation power at AC-3, 400 V: 5.7 kW

More info

▲

11BG1210D024

Three-pole contactor, IEC operating current Ie (AC3) = 12A, DC coil, 24VDC, 1NO auxiliary contact

Technical specifications

Type of product:
Contactors
Number of poles:
3
Type of coil:
DC coil
Rated coil voltage [V]:
24
IEC operating current Ith (AC1) [A]:
20
IEC operating current and power Ie (AC3) 400V [A/Kw]:
12A / 5.7Kw
UL/CSA horsepower ratings 480V [HP]:
7.5
Type of built-in auxiliary contacts:
1NO
Type of mounting:
Screw / DIN rail 35mm
Order code11BG1210D024
Weight [g]226
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]060X045X060
Volume [cm³]162
Bar code [EAN13]8013975080993
HS Code85365080

60.59 £


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
