View larger
Images are for illustrative purposes only. Please refer to data sheet for details

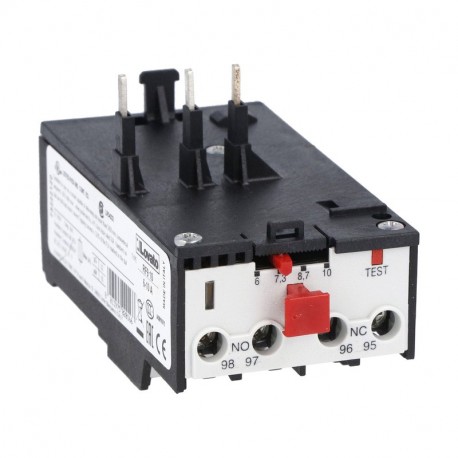

11RF910 RF910 LOVATO MOTOR PROTECTION RELAY, PHASE FAILURE / SINGLE PHASE SENSITIVE. THREE POLE (THREE PHASE..
11RF910
RF910
LOVATO ELECTRIC
1 Pcs.
MOTOR PROTECTION RELAY, PHASE FAILURE / SINGLE PHASE SENSITIVE. THREE POLE (THREE PHASE), MANUAL RESETTING. DIRECT MOUNTING ON BG06, BG09, BG12 MINI-CONTACTORS, 6…10A
Relay t. diff. man. reg: 6-10A BG
Motor protection relay, phase failure/single-phase sensitive. Three-pole (three-phase), manual resetting. Direct mounting on BG06, BG09, BG12 mini-contactors, 6...10A
Automation > Thermal overload relay
Motor protection relays - LOVATO ELECTRIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲11RF910
Motor protection relay, phase failure/single-phase sensitive. Three-pole (three-phase), manual resetting. Direct mounting on BG06, BG09, BG12 mini-contactors, 6...10A
Technical specifications
- Type of product:
- Thermal overload relays
- Operational current [A]:
- 6.0...10
- Reset mode:
- Manual
- For contactor series:
- BG
- Type:
- Phase failure / Single-phase sensitive
- Type of mounting:
- Direct mounting on BG06... BG09... BG12…
| Order code | 11RF910 |
|---|---|
| Weight [g] | 118 |
| Qty. per package | 5 |
| Multiple qty. of packs per order | 5 |
| Package dimensions [mm] | 065X046X090 |
| Volume [cm³] | 269.1 |
| Bar code [EAN13] | 8013975020166 |
| HS Code | 85364900 |
55.39 £
| Feature Name | Feature Value |
|---|---|
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Release class (EF006668) | CLASS 10 A |
| Mounting method (EF000003) | Direct attachment |
| Adjustable current range (EF008211) | 6 A |
| Reset function push-button (EF011942) | Yes |
| Reset function automatic (EF011941) | No |
| Reset function input (EF011940) | No |
| Max. rated operation voltage Ue (EF007357) | 690 V |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 1 |
| Number of auxiliary contacts as normally open contact (EF001376) | 1 |
