View larger
Images are for illustrative purposes only. Please refer to data sheet for details

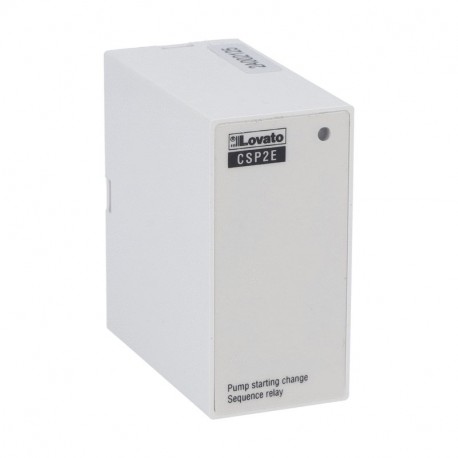

31CSP2E230 CSP2E230 LOVATO START-UP PRIORITY CHANGE RELAYS, PLUG-IN VERSION, 2 OUTPUTS. AC SUPPLY VOLTAGE, 2..
31CSP2E230
CSP2E230
LOVATO ELECTRIC
1 Pcs.
START-UP PRIORITY CHANGE RELAYS, PLUG-IN VERSION, 2 OUTPUTS. AC SUPPLY VOLTAGE, 230-240VAC
Inter relay. priority 2 pumps 230V AC Undecal socket
Start-up priority change relay, plug-in version, 2 outputs. AC supply voltage, 230-240VAC
Automation > (Fill) level monitoring relay
Level control relays - LOVATO ELECTRIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲31CSP2E230
Start-up priority change relay, plug-in version, 2 outputs. AC supply voltage, 230-240VAC
Technical specifications
- Type of product:
- Start-up priority change relays
- Functions:
- Start-up priority change relay. Possible starting of stand-by motor
- Number of relay outputs:
- 2
- Rated supply voltage:
- 230-240VAC
- Type of installation:
- 11-pin plug-in housing (socket S11)
| Order code | 31CSP2E230 |
|---|---|
| Weight [g] | 152 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 080X040X099 |
| Volume [cm³] | 316.8 |
| Bar code [EAN13] | 8013975091944 |
| HS Code | 85389091 |
163.57 £
| Feature Name | Feature Value |
|---|---|
| Type of electric connection (EF003961) | Screw connection |
| With detachable clamps (EF003340) | No |
| Cascadable (EF000507) | No |
| Number of contacts as change-over contact (EF008257) | 0 |
| Number of contacts as normally open contact (EF008256) | 2 |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Depth (EF000049) | 84 mm |
| Height (EF000040) | 76 mm |
| Width (EF000008) | 38 mm |
