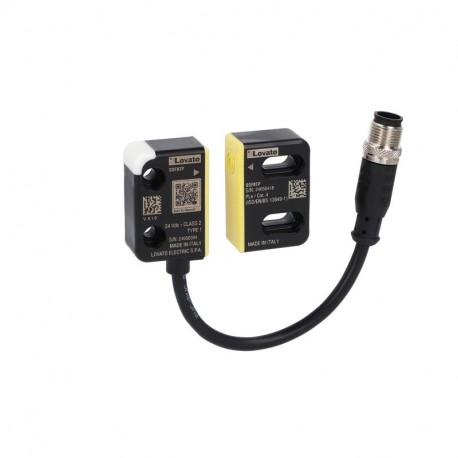

LOVATO ELECTRIC SSF8TP SSF8TP LOVATO RFID 24VDC Teach-in Security Sensor View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SSF8TP LOVATO RFID 24VDC Teach-in Security Sensor

SSF8TP

SSF8TP

LOVATO ELECTRIC

1 Pcs.

RFID 24VDC Teach-in Security Sensor RFID safety sensors SSF… series, 8-pin version, with M12 Pigtail connector 15cm and Teach-in coding type SENSORE RFID 8 PIN, TEACH-IN, PIGTAIL

Automation > Position switch modular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Detect safety gates and access panels securely with the Lovato Electric SSF8TP RFID 24VDC teach-in security sensor. Coded RFID safety sensors prevent unauthorized machine access and ensure interlock compliance in hazardous industrial automation zones.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Ambient temperature during operating (EF007515): -25 °C
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 0
  • Number of contacts as normally closed contact (EF008255): 0
  • Length of sensor (EF007334): 18 mm
  • Height of sensor (EF007283): 57 mm
  • Width sensor (EF007094): 28.5 mm
  • Rated operation current Ie at DC-13, 24 V (EF007087): 0.3 A
  • Number of safety auxiliary contacts (EF006940): 2
  • Number of cams (EF003953): 0
  • With status indication (EF001602): Yes
  • Suitable for safety functions (EF001597): Yes
  • Degree of protection (IP) (EF005474): IP67
  • Type of electric connection (EF003961): Connector M12
  • Housing material (EF001596): Plastic

More info

▲

SSF8TP

RFID safety sensors SSF… series, 8-pin version, with M12 Pigtail connector 15cm and Teach-in coding type

Technical specifications

Type of product:
RFID safety sensors
Product characteristics:
SSF
Type of contacts:
OSSD
Order codeSSF8TP
Weight [g]79
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]190X150X020
Volume [cm³]570
Bar code [EAN13]8013975321119
HS Code9032890090

237.46 £


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
