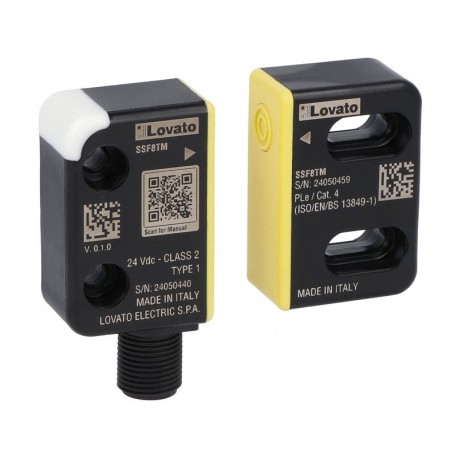

LOVATO ELECTRIC SSF8TM SSF8TM LOVATO RFID Security Sensor 24VDC M12 Teach-in Connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SSF8TM LOVATO RFID Security Sensor 24VDC M12 Teach-in Connector

SSF8TM

SSF8TM

LOVATO ELECTRIC

1 Pcs.

RFID Security Sensor 24VDC M12 Teach-in Connector RFID safety sensors SSF… series, 8-pin version, with M12 connector and Teach-in coding type SENSORE RFID 8 PIN, TEACH-IN, M12

Automation > Position switch modular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An RFID security sensor utilizes coded radio frequency technology to non-contactuously monitor the safety status of machine guards, access doors, and protective enclosures. Designed by Lovato Electric, the SSF8TM unit incorporates an M12 connector and teach-in capabilities for advanced safety interlock circuits.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Ambient temperature during operating (EF007515): -25 °C
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 0
  • Number of contacts as normally closed contact (EF008255): 0
  • Length of sensor (EF007334): 18 mm
  • Height of sensor (EF007283): 57 mm
  • Width sensor (EF007094): 28.5 mm
  • Rated operation current Ie at DC-13, 24 V (EF007087): 0.3 A
  • Number of safety auxiliary contacts (EF006940): 2
  • Number of cams (EF003953): 0
  • With status indication (EF001602): Yes
  • Suitable for safety functions (EF001597): Yes
  • Degree of protection (IP) (EF005474): IP67
  • Type of electric connection (EF003961): Connector M12
  • Housing material (EF001596): Plastic

More info

▲

SSF8TM

RFID safety sensors SSF… series, 8-pin version, with M12 connector and Teach-in coding type

Technical specifications

Type of product:
RFID safety sensors
Product characteristics:
SSF
Type of contacts:
OSSD
Order codeSSF8TM
Weight [g]67
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]190X150X020
Volume [cm³]570
Bar code [EAN13]8013975321133
HS Code9032890090

217.42 £


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
