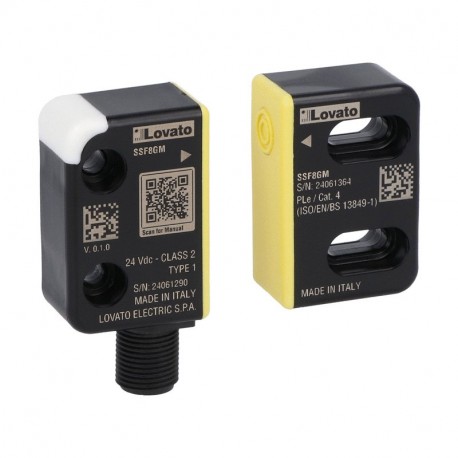

LOVATO ELECTRIC SSF8GM SSF8GM LOVATO RFID Security Sensor 24VDC M12 Connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SSF8GM LOVATO RFID Security Sensor 24VDC M12 Connector

SSF8GM

SSF8GM

LOVATO ELECTRIC

1 Pcs.

RFID Security Sensor 24VDC M12 Connector RFID safety sensors SSF… series, 8-pin version, with M12 connector and generic coding type SENSORE RFID 8 PIN, GENERIC, M12

Automation > Position switch modular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An SSF8GM LOVATO RFID Security Sensor 24VDC M12 Connector is deployed in industrial environments to monitor safety guards, access doors, and machine perimeters. Such safety sensors rely on non-contact electronic coding to verify that protective barriers remain properly closed before heavy machinery can start or continue operating.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Ambient temperature during operating (EF007515): -25 °C
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 0
  • Number of contacts as normally closed contact (EF008255): 0
  • Length of sensor (EF007334): 18 mm
  • Height of sensor (EF007283): 57 mm
  • Width sensor (EF007094): 28.5 mm
  • Rated operation current Ie at DC-13, 24 V (EF007087): 0.3 A
  • Number of safety auxiliary contacts (EF006940): 2
  • Number of cams (EF003953): 0
  • With status indication (EF001602): Yes
  • Suitable for safety functions (EF001597): Yes
  • Degree of protection (IP) (EF005474): IP67
  • Type of electric connection (EF003961): Connector M12
  • Housing material (EF001596): Plastic

More info

▲

SSF8GM

RFID safety sensors SSF… series, 8-pin version, with M12 connector and generic coding type

Technical specifications

Type of product:
RFID safety sensors
Product characteristics:
SSF
Type of contacts:
OSSD
Order codeSSF8GM
Weight [g]67
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]190X150X020
Volume [cm³]570
Bar code [EAN13]8013975321126
HS Code9032890090

203.13 £
