View larger
Images are for illustrative purposes only. Please refer to data sheet for details

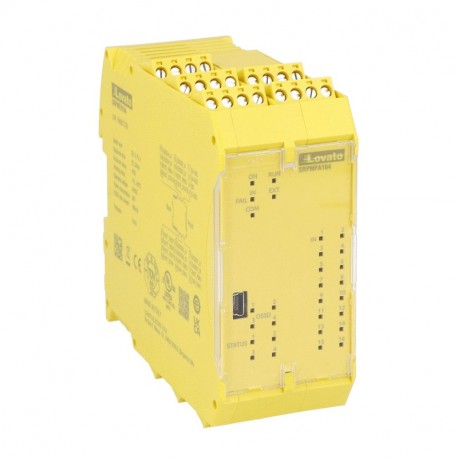

SRPMFA164 LOVATO Multifunction SRP programmable safety module, alim. Aux. 24VDC, up to CAT.4
SRPMFA164
SRPMFA164
LOVATO ELECTRIC
1 Pcs.
Multifunction SRP programmable safety module, alim. Aux. 24VDC, up to CAT.4
Programmable safety relay SRP… series, multi-function, auxiliary supply 24VDC, up to CAT.4, Ple
Automation > Device for monitoring of safety-related circuits
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲SRPMFA164
Programmable safety relay SRP… series, multi-function, auxiliary supply 24VDC, up to CAT.4, Ple
Technical specifications
- Type of product:
- Safety relays - programmable
- Product characteristics:
- SRP
| Order code | SRPMFA164 |
|---|---|
| Weight [g] | 320 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 125X116X058 |
| Volume [cm³] | 841 |
| Bar code [EAN13] | 8013975321195 |
| HS Code | 8537109199 |
972.76 £
| Feature Name | Feature Value |
|---|---|
| SIL according to IEC 61508 (EF009889) | 3 |
| Performance level according to EN ISO 13849-1 (EF007399) | Level e |
| Type of safety according to IEC 61496-1 (EF004105) | 4 |
| Evaluation inputs (EF008245) | 1-channel or 1- and 2-channel |
| Type of electric connection (EF003961) | Screw connection |
| Model (EF000010) | Basic device |
| With approval for TÜV (EFDE0031) | Yes |
| Suitable for monitoring of valves (EF007272) | Yes |
| Suitable for monitoring of tactile sensors (EF007271) | Yes |
| Suitable for monitoring of position switches (EF007270) | Yes |
| Suitable for monitoring of optoelectronic protection equipment (EF007269) | Yes |
| Suitable for monitoring of emergency-stop circuits (EF007268) | Yes |
| Suitable for monitoring of proximity switches (EF007267) | No |
| Suitable for monitoring of magnetic switches (EF007266) | Yes |
| With approval for BG BIA (EF004145) | No |
| With muting function (EF004057) | No |
| Suitable for rail mounting (EF003972) | Yes |
| With feedback circuit (EF003343) | No |
| With start input (EF003342) | Yes |
| With detachable clamps (EF003340) | No |
| With approval according to UL (EF001783) | Yes |
| Number of outputs, signalling function, delayed, semiconductors (EF003351) | 4 |
| Number of outputs, signalling function, undelayed, semiconductors (EF003350) | 4 |
| Number of outputs, signalling function, delayed, with contact (EF003349) | 4 |
| Number of outputs, signalling function, undelayed, with contact (EF003348) | 4 |
| Number of outputs, safety related, delayed, semiconductors (EF003347) | 4 |
| Number of outputs, safety related, undelayed, semiconductors (EF003346) | 4 |
| Number of outputs, safety related, delayed, with contact (EF003345) | 4 |
| Number of outputs, safety related, undelayed, with contact (EF003344) | 4 |
| Depth (EF000049) | 114.5 mm |
| Height (EF000040) | 108 mm |
| Width (EF000008) | 45 mm |
