View larger
Images are for illustrative purposes only. Please refer to data sheet for details

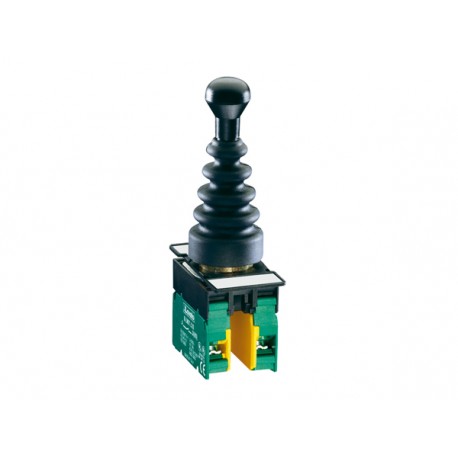

8LM2TJ200 LM2TJ200 LOVATO JOYSTICK, Ø22MM 8LM METAL SERIES, WITHOUT MECHANICAL INTERLOCK. COMPLETE WITH AUXI..
8LM2TJ200
LM2TJ200
LOVATO ELECTRIC
1 Pcs.
JOYSTICK, Ø22MM 8LM METAL SERIES, WITHOUT MECHANICAL INTERLOCK. COMPLETE WITH AUXILIRY CONTACT, INSTABLE, 2 NO AUXILIARY CONTACTS
SPRING RETURN 2 DIRECTIONAL JOY STICK WI
Joystick, Ø22mm 8LM series metal, without mechanical interlock. Complete with auxiliary contact, instable, 2NO auxiliary contacts
Automation > Control switch, Joystick
Pushbuttons and selector switches - LOVATO ELECTRIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲8LM2TJ200
Joystick, Ø22mm 8LM series metal, without mechanical interlock. Complete with auxiliary contact, instable, 2NO auxiliary contacts
Technical specifications
- Type of actuator:
- 2 instable
| Order code | 8LM2TJ200 |
|---|---|
| Weight [g] | 97 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 133X044X032 |
| Volume [cm³] | 187.264 |
| Bar code [EAN13] | 8013975107669 |
| HS Code | 85365080 |
| Feature Name | Feature Value |
|---|---|
| Degree of protection (NEMA) (EF011959) | 4X |
| Material front ring (EF005972) | Metal |
| Degree of protection (IP) (EF005474) | IP65 |
| Locking in 0-position (EF006283) | No |
| With front ring (EF006014) | Yes |
| Coder (EF005666) | No |
| Analogue output signal configurable (EF003236) | No |
| With retraction in 0-position (EF002428) | Yes |
| Number of normally closed contacts per actuation direction (EF008263) | 0 |
| Joy stick length (EF006524) | 70.5 mm |
| Number of make-and-break contacts per direction (EF005599) | 0 |
| Number of normally open contacts per actuation direction (EF002427) | 0 |
| Number of actuation directions (EF002425) | 2 |
| Centre mounting, hole diameter (EF002424) | 22 mm |
| Number of switch positions (EF000231) | 0 |
