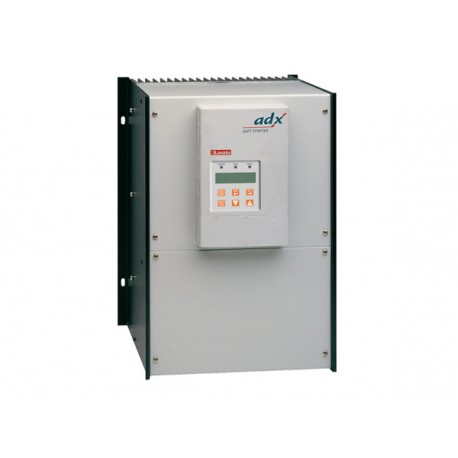

LOVATO ELECTRIC 51ADX0820 51ADX0820 ADX0820 LOVATO SOFT STARTER, ADX TYPE, FOR SEVERE DUTY (STARTING CURRENT 5•IE). PREDISPOSED FOR EX.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

51ADX0820 ADX0820 LOVATO SOFT STARTER, ADX TYPE, FOR SEVERE DUTY (STARTING CURRENT 5•IE). PREDISPOSED FOR EX..

51ADX0820

ADX0820

LOVATO ELECTRIC

1 Pcs.

SOFT STARTER, ADX TYPE, FOR SEVERE DUTY (STARTING CURRENT 5•IE). PREDISPOSED FOR EXTERNAL BY-PASS CONTACTOR, 820A Start. State 820A Soft starter, ADX... type, for severe duty (starting current 5•Ie). Predisposed for external by-pass contactor, 820A

Automation > Soft starter
Soft Starters / Starters Static - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed by Lovato Electric, the 51ADX0820 ADX0820 LOVATO SOFT STARTER, ADX TYPE, FOR SEVERE DUTY (STARTING CURRENT 5•IE). PREDISPOSED FOR EX.. functions as a high-performance electronic starter built to handle demanding motor starting cycles in heavy industrial plants.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type for actuating (EF008242): DC
  • Degree of protection (IP) (EF005474): IP00
  • Function (EF000030): Single direction
  • Rated control supply voltage AC 60 Hz (EF003979): 208 V
  • Rated control supply voltage AC 50 Hz (EF003978): 208 V
  • Rated operating voltage Ue (EF002418): 208 V
  • Torque control (EF009215): Yes
  • Internal bypass (EF009214): No
  • Integrated motor overload protection (EF007297): Yes
  • With display (EF000458): Yes
  • Rated surrounding temperature without derating (EF007074): 55 °C
  • Rated power three-phase motor, inline, at 400 V (EF007054): 400 kW
  • Rated power three-phase motor, inline, at 230 V (EF007053): 250 kW
  • Rated operation current Ie at 40 °C Tu (EF007039): 820 A

More info

▲

51ADX0820

Soft starter, ADX... type, for severe duty (starting current 5•Ie). Predisposed for external by-pass contactor, 820A

Technical specifications

Type of product:
Advanced, three phase control
Number of controlled phases:
3
Rated operational voltage:
208…415VAC
Rated supply voltage:
208…240VAC
Rated starter current Ie [A]:
820
Rated motor power 230VAC [kW]:
250
Rated motor power 400VAC [kW]:
400
Rated motor power 500VAC [KW]:
600
Functions:
Motor current thermal protection, starting with current limit, torque control, kick start, dynamic braking, PTC input, event log, RS232
Order code51ADX0820
Weight [g]164000
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]910X950X442
Volume [cm³]382109
Bar code [EAN13]8013975068151
HS Code85371098
