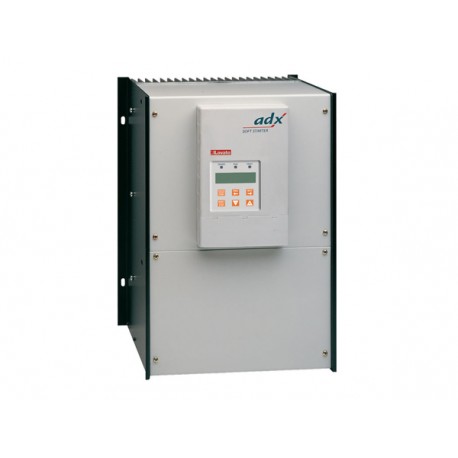

LOVATO ELECTRIC 51ADX0470 51ADX0470 ADX0470 LOVATO SOFT STARTER, ADX TYPE, FOR SEVERE DUTY (STARTING CURRENT 5•IE). PREDISPOSED FOR EX.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

51ADX0470 ADX0470 LOVATO SOFT STARTER, ADX TYPE, FOR SEVERE DUTY (STARTING CURRENT 5•IE). PREDISPOSED FOR EX..

51ADX0470

ADX0470

LOVATO ELECTRIC

1 Pcs.

SOFT STARTER, ADX TYPE, FOR SEVERE DUTY (STARTING CURRENT 5•IE). PREDISPOSED FOR EXTERNAL BY-PASS CONTACTOR, 470A Start. 470A Soft starter, ADX... type, for severe duty (starting current 5•Ie). Predisposed for external by-pass contactor, 470A

Automation > Soft starter
Soft Starters / Starters Static - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Engineered for severe duty applications, the 51ADX0470 Lovato soft starter delivers controlled motor acceleration to extend equipment lifespan in heavy industrial environments. It regulates voltage input during startup to mitigate mechanical and electrical wear. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Voltage type for actuating (EF008242): DC
  • Degree of protection (IP) (EF005474): IP00
  • Function (EF000030): Single direction
  • Rated control supply voltage AC 60 Hz (EF003979): 208 V
  • Rated control supply voltage AC 50 Hz (EF003978): 208 V
  • Rated operating voltage Ue (EF002418): 208 V
  • Torque control (EF009215): Yes
  • Internal bypass (EF009214): No
  • Integrated motor overload protection (EF007297): Yes
  • With display (EF000458): Yes
  • Rated surrounding temperature without derating (EF007074): 55 °C
  • Rated power three-phase motor, inline, at 400 V (EF007054): 250 kW
  • Rated power three-phase motor, inline, at 230 V (EF007053): 132 kW
  • Rated operation current Ie at 40 °C Tu (EF007039): 470 A

More info

▲

51ADX0470

Soft starter, ADX... type, for severe duty (starting current 5•Ie). Predisposed for external by-pass contactor, 470A

Technical specifications

Type of product:
Advanced, three phase control
Number of controlled phases:
3
Rated operational voltage:
208…415VAC
Rated supply voltage:
208…240VAC
Rated starter current Ie [A]:
470
Rated motor power 230VAC [kW]:
132
Rated motor power 400VAC [kW]:
250
Rated motor power 500VAC [KW]:
315
Functions:
Motor current thermal protection, starting with current limit, torque control, kick start, dynamic braking, PTC input, event log, RS232
Order code51ADX0470
Weight [g]95000
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]790X650X430
Volume [cm³]220805
Bar code [EAN13]8013975064139
HS Code85371098

11640.48 £
