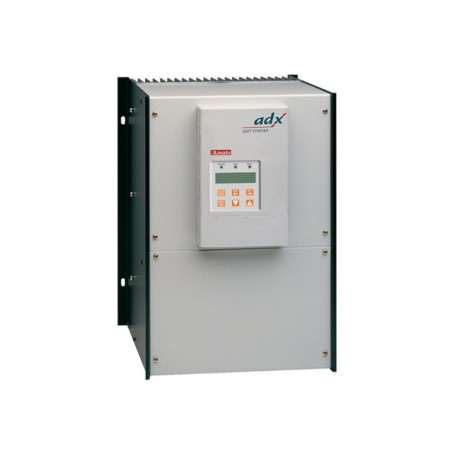

LOVATO ELECTRIC 51ADX0365 51ADX0365 ADX0365 LOVATO SOFT STARTER, ADX TYPE, FOR SEVERE DUTY (STARTING CURRENT 5•IE). PREDISPOSED FOR EX.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

51ADX0365 ADX0365 LOVATO SOFT STARTER, ADX TYPE, FOR SEVERE DUTY (STARTING CURRENT 5•IE). PREDISPOSED FOR EX..

51ADX0365

ADX0365

LOVATO ELECTRIC

1 Pcs.

SOFT STARTER, ADX TYPE, FOR SEVERE DUTY (STARTING CURRENT 5•IE). PREDISPOSED FOR EXTERNAL BY-PASS CONTACTOR, 365A Start. 365A Soft starter, ADX... type, for severe duty (starting current 5•Ie). Predisposed for external by-pass contactor, 365A

Automation > Soft starter
Soft Starters / Starters Static - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Lovato heavy-duty soft starter is engineered to handle severe starting applications with elevated current demands, protecting critical industrial motors. Industrial facilities deploy these controllers to manage high-inertia loads safely and reliably.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type for actuating (EF008242): DC
  • Degree of protection (IP) (EF005474): IP00
  • Function (EF000030): Single direction
  • Rated control supply voltage AC 60 Hz (EF003979): 208 V
  • Rated control supply voltage AC 50 Hz (EF003978): 208 V
  • Rated operating voltage Ue (EF002418): 208 V
  • Torque control (EF009215): Yes
  • Internal bypass (EF009214): No
  • Integrated motor overload protection (EF007297): Yes
  • With display (EF000458): Yes
  • Rated surrounding temperature without derating (EF007074): 55 °C
  • Rated power three-phase motor, inline, at 400 V (EF007054): 200 kW
  • Rated power three-phase motor, inline, at 230 V (EF007053): 110 kW
  • Rated operation current Ie at 40 °C Tu (EF007039): 365 A

More info

▲

51ADX0365

Soft starter, ADX... type, for severe duty (starting current 5•Ie). Predisposed for external by-pass contactor, 365A

Technical specifications

Type of product:
Advanced, three phase control
Number of controlled phases:
3
Rated operational voltage:
208…415VAC
Rated supply voltage:
208…240VAC
Rated starter current Ie [A]:
365
Rated motor power 230VAC [kW]:
110
Rated motor power 400VAC [kW]:
200
Rated motor power 500VAC [KW]:
250
Functions:
Motor current thermal protection, starting with current limit, torque control, kick start, dynamic braking, PTC input, event log, RS232
Order code51ADX0365
Weight [g]49300
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]640X600X380
Volume [cm³]145920
Bar code [EAN13]8013975064092
HS Code85371098

9395.2 £
