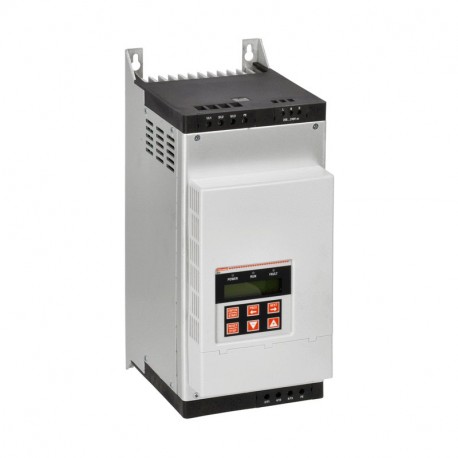

LOVATO ELECTRIC 51ADX0017B 51ADX0017B ADX0017B LOVATO SOFT STARTER, ADX TYPE, FOR SEVERE DUTY (STARTING CURRENT 5•IE). WITH INTEGRATED .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

51ADX0017B ADX0017B LOVATO SOFT STARTER, ADX TYPE, FOR SEVERE DUTY (STARTING CURRENT 5•IE). WITH INTEGRATED ..

51ADX0017B

ADX0017B

LOVATO ELECTRIC

1 Pcs.

SOFT STARTER, ADX TYPE, FOR SEVERE DUTY (STARTING CURRENT 5•IE). WITH INTEGRATED BY-PASS CONTACTOR, 17A ADX static starter. B with built-in by-pass (Severe Applications, starting current = 5Ie) 17A Soft starter, ADX... type, for severe duty (starting current 5•Ie). With integrated by-pass contactor, 17A

Automation > Soft starter
Soft Starters / Starters Static - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Lovato Electric soft starter 51ADX0017B is an electronic control device built to manage the acceleration and deceleration phases of industrial electric motors. By replacing sudden full-voltage starts with a smooth ramp, this unit prevents mechanical wear and lowers peak electrical demand.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type for actuating (EF008242): DC
  • Degree of protection (IP) (EF005474): IP20
  • Function (EF000030): Single direction
  • Rated control supply voltage AC 60 Hz (EF003979): 208 V
  • Rated control supply voltage AC 50 Hz (EF003978): 208 V
  • Rated operating voltage Ue (EF002418): 208 V
  • Torque control (EF009215): Yes
  • Internal bypass (EF009214): Yes
  • Integrated motor overload protection (EF007297): Yes
  • With display (EF000458): Yes
  • Rated surrounding temperature without derating (EF007074): 55 °C
  • Rated power three-phase motor, inline, at 400 V (EF007054): 7.5 kW
  • Rated power three-phase motor, inline, at 230 V (EF007053): 4 kW
  • Rated operation current Ie at 40 °C Tu (EF007039): 17 A

More info

▲

51ADX0017B

Soft starter, ADX... type, for severe duty (starting current 5•Ie). With integrated by-pass contactor, 17A

Technical specifications

Type of product:
Advanced, three phase control
Number of controlled phases:
3
Rated operational voltage:
208…500VAC
Rated supply voltage:
208…240VAC
Rated starter current Ie [A]:
17
Rated motor power 230VAC [kW]:
4
Rated motor power 400VAC [kW]:
7.5
Rated motor power 500VAC [KW]:
9
Functions:
Motor current thermal protection, starting with current limit, torque control, kick start, dynamic braking, PTC input, event log, RS232
Order code51ADX0017B
Weight [g]8970
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]385X165X240
Volume [cm³]15246
Bar code [EAN13]8013975064023
HS Code85371098

1779.05 £


Product Datasheet
