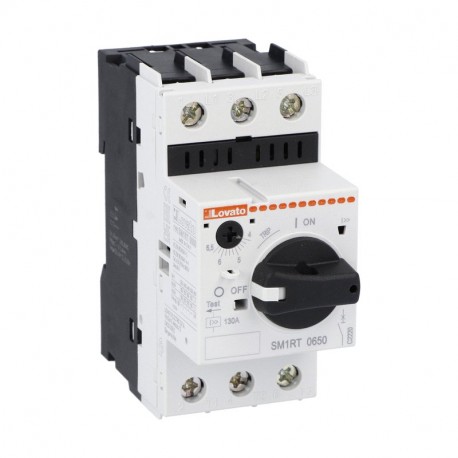

LOVATO ELECTRIC SM1RT0650 SM1RT0650 LOVATO Transformer Protection 4-6.5A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SM1RT0650 LOVATO Transformer Protection 4-6.5A

SM1RT0650

SM1RT0650

LOVATO ELECTRIC

1 Pcs.

Transformer Protection 4-6.5A Motor protection circuit breaker, transformer protection, IEC breaking capacity Icu 100kA at 400V, 4...6.5A

Automation > Motor protection circuit-breaker
Motor protection circuit breakers - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Lovato Electric transformer protection device (SM1RT0650) provides specialized current sensing and thermal-magnetic trip mechanisms to safeguard control transformers against overloads and short-circuit conditions. These units are integral to maintaining the reliability of secondary power circuits in industrial panels.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Overload release current setting (EF002336): 4 A
  • Rated operating voltage (EF001435): 0 V
  • Number of poles (EF001391): 3
  • Rated permanent current Iu (EF001389): 6.5 A
  • Depth (EF000049): 91 mm
  • Height (EF000040): 97 mm
  • Width (EF000008): 45 mm
  • Phase failure sensitive (EF007400): Yes
  • With thermal overload protection (EF006233): Yes
  • With integrated under voltage release (EF001390): No
  • With integrated auxiliary switch (EF001387): No
  • Device construction (EF008240): Complete device in housing
  • Switch off technique (EF007007): Thermomagnetic
  • Type of control element (EF006976): Rotating button
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Degree of protection (IP) (EF005474): IP20

More info

▲

SM1RT0650

Motor protection circuit breaker, transformer protection, IEC breaking capacity Icu 100kA at 400V, 4...6.5A

Technical specifications

Type of product:
Motor protection circuit breaker
Thermal trip adjustment range [A]:
4…6.5
Rated current In [A]:
6.5
Short-circuit current breaking capacity (Icu) at AC 400V [kA]:
100
Type of protection:
Magnetic and thermal
Type of control:
Rotary knob
Certified UL Type E:
No
Order codeSM1RT0650
Weight [g]340
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]090X047X086
Volume [cm³]363.78
Bar code [EAN13]8013975311769
HS Code85362010
