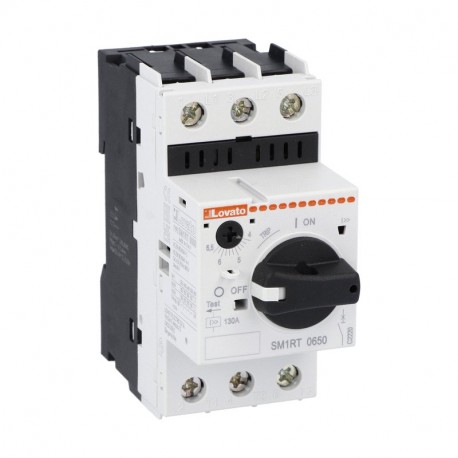

LOVATO ELECTRIC SM1RT0100 SM1RT0100 LOVATO Transformer Protection 0.63-1A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SM1RT0100 LOVATO Transformer Protection 0.63-1A

SM1RT0100

SM1RT0100

LOVATO ELECTRIC

1 Pcs.

Transformer Protection 0.63-1A Motor protection circuit breaker, transformer protection, IEC breaking capacity Icu 100kA at 400V, 0.63...1A

Automation > Motor protection circuit-breaker
Motor protection circuit breakers - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Lovato Electric part SM1RT0100 is a specialized transformer protection device designed to guard control circuit transformers against overload and short-circuit conditions. This housing-enclosed unit is typically installed in industrial control panels to maintain system reliability and prevent thermal damage to sensitive power supplies.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Overload release current setting (EF002336): 0.63 A
  • Rated operating voltage (EF001435): 0 V
  • Number of poles (EF001391): 3
  • Rated permanent current Iu (EF001389): 1 A
  • Depth (EF000049): 91 mm
  • Height (EF000040): 97 mm
  • Width (EF000008): 45 mm
  • Phase failure sensitive (EF007400): Yes
  • With thermal overload protection (EF006233): Yes
  • With integrated under voltage release (EF001390): No
  • With integrated auxiliary switch (EF001387): No
  • Device construction (EF008240): Complete device in housing
  • Switch off technique (EF007007): Thermomagnetic
  • Type of control element (EF006976): Rotating button
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Degree of protection (IP) (EF005474): IP20

More info

▲

SM1RT0100

Motor protection circuit breaker, transformer protection, IEC breaking capacity Icu 100kA at 400V, 0.63...1A

Technical specifications

Type of product:
Motor protection circuit breaker
Thermal trip adjustment range [A]:
0.63…1
Rated current In [A]:
1
Short-circuit current breaking capacity (Icu) at AC 400V [kA]:
100
Type of protection:
Magnetic and thermal
Type of control:
Rotary knob
Certified UL Type E:
No
Order codeSM1RT0100
Weight [g]340
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]090X047X086
Volume [cm³]363.78
Bar code [EAN13]8013975311721
HS Code85362010
