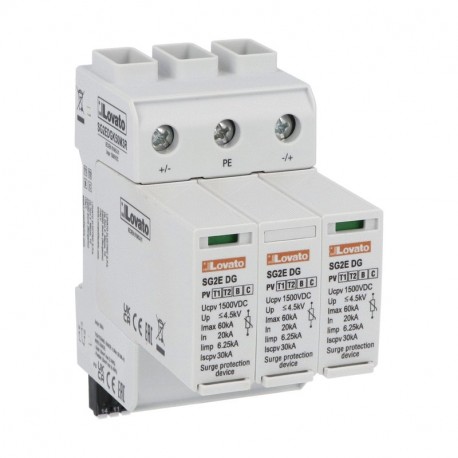

LOVATO ELECTRIC SG2EDGK50M3R SG2EDGK50M3R LOVATO PROT. SURGE DEVICE TYPE 1-2 1500VDC+RC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SG2EDGK50M3R LOVATO PROT. SURGE DEVICE TYPE 1-2 1500VDC+RC

SG2EDGK50M3R

SG2EDGK50M3R

LOVATO ELECTRIC

1 Pcs.

PROT. SURGE DEVICE TYPE 1-2 1500VDC+RC Surge protection device type 1,2 for photovoltaic applications with plug-in cartridge, Un 1500VDC, short-circuit current Iscpv 30kA, +, -, PE. With remote contact

Automation > Surge protection device for power supply systems
Surge protection devices - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Lovato Electric SG2EDGK50M3R PROT. SURGE DEVICE TYPE 1-2 1500VDC+RC provides high-capacity transient protection for demanding DC power systems and solar installations. These combination devices mitigate the destructive energy of direct and indirect lightning strikes on high-voltage infrastructure. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Short-circuit breaking capacity (Isccr) (EF012627): 30 kA
  • Max. discharge surge current (8/20) (EF012274): 60 kA
  • Max. PV-voltage (EF008795): 1500 V
  • Max. continuous voltage DC (EF004777): 1500 V
  • Nominal voltage DC (EF004221): 1500 V
  • Nominal discharge surge current (8/20) (EF004214): 6.25 kA
  • Max. continuous voltage AC (EF004198): 1500 V
  • Voltage protection level (EF003525): 4.5 kV
  • Number of conductors (without earthing) (EF001148): 2
  • Leakage-current free (EF016002): No
  • Integrated short-circuit protection (EF016000): No
  • System configuration TN-C-S (EF009933): No
  • System configuration other (EF009932): No
  • System configuration TT (EF009931): No
  • System configuration TN-S (EF009930): No
  • System configuration TN-C (EF009929): No

More info

▲

SG2EDGK50M3R

Surge protection device type 1,2 for photovoltaic applications with plug-in cartridge, Un 1500VDC, short-circuit current Iscpv 30kA, +, -, PE. With remote contact

Technical specifications

Type of product:
SPD
Type of system:
Photovoltaic
Type / Class:
1, 2
In [kA]:
20
Rated voltage [VDC]:
1500
Type of mounting:
Din rail
For photovoltaic application:
Yes
Order codeSG2EDGK50M3R
Weight [g]443
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]110X100X060
Volume [cm³]660
Bar code [EAN13]8013975313237
HS Code85365080
