View larger
Images are for illustrative purposes only. Please refer to data sheet for details

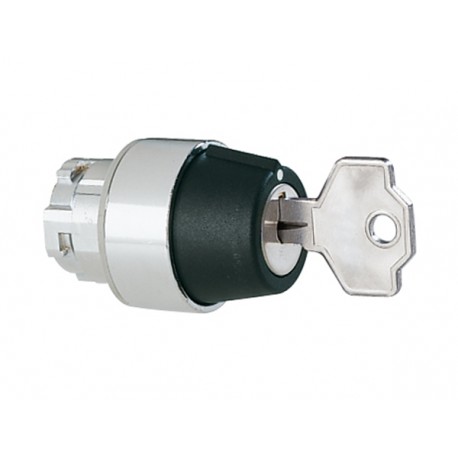

8LM2TS360 LM2TS360 LOVATO SELECTOR SWITCH ACTUATOR KEY, Ø22MM 8LM METAL SERIES, 3 POSITION, 1 0 2. WITHDRAL ..
8LM2TS360
LM2TS360
LOVATO ELECTRIC
1 Pcs.
SELECTOR SWITCH ACTUATOR KEY, Ø22MM 8LM METAL SERIES, 3 POSITION, 1 - 0 < 2. WITHDRAL AT 0
Metal Selector With key 3 positions "1-0-2" return "1-0<2" Removable key pos. "0"
Selector switch actuator key, Ø22mm 8LM series metal, 3 position, 1 - 0 < 2. Withdral at 0
Automation > Front element for selector switch
Pushbuttons and selector switches - LOVATO ELECTRIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲8LM2TS360
Selector switch actuator key, Ø22mm 8LM series metal, 3 position, 1 - 0 < 2. Withdral at 0
Technical specifications
- Type of actuator:
- 1 - 0 < 2, key extraction in 0
| Order code | 8LM2TS360 |
|---|---|
| Weight [g] | 78.6 |
| Qty. per package | 10 |
| Multiple qty. of packs per order | 10 |
| Package dimensions [mm] | 150X060X048 |
| Volume [cm³] | 43.2 |
| Bar code [EAN13] | 8013975045688 |
| HS Code | 85365080 |
| Feature Name | Feature Value |
|---|---|
| Degree of protection (NEMA) (EF011959) | 4X |
| Type of control element (EF006976) | Key |
| Material front ring (EF005972) | Metal |
| Degree of protection (IP), front side (EF003118) | IP65 |
| Switching function latching (EF007447) | No |
| With front ring (EF006014) | Yes |
| Spring-return (EF001407) | Yes |
| Suitable for lighting (EF001142) | No |
| Height opening (EF004778) | 22 mm |
| Width opening (EF004565) | 22 mm |
| Number of switch positions (EF000231) | 3 |
| Hole diameter (EF000079) | 22 mm |
