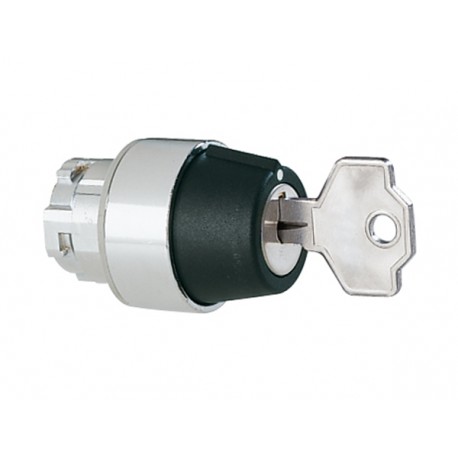

LOVATO ELECTRIC 8LM2TS390 8LM2TS390 LM2TS390 LOVATO SELECTOR SWITCH ACTUATOR KEY, Ø22MM 8LM METAL SERIES, 3 POSITION, 1 0 2. WITHDRAL .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

8LM2TS390 LM2TS390 LOVATO SELECTOR SWITCH ACTUATOR KEY, Ø22MM 8LM METAL SERIES, 3 POSITION, 1 0 2. WITHDRAL ..

8LM2TS390

LM2TS390

LOVATO ELECTRIC

1 Pcs.

SELECTOR SWITCH ACTUATOR KEY, Ø22MM 8LM METAL SERIES, 3 POSITION, 1 - 0 < 2. WITHDRAL AT 1 Metal Selector With key 3 positions "1-0-2" return "1-0<2" Removable key pos. "1" Selector switch actuator key, Ø22mm 8LM series metal, 3 position, 1 - 0 < 2. Withdral at 1

Automation > Front element for selector switch
Pushbuttons and selector switches - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

8LM2TS390 LM2TS390 Lovato selector switch actuator key is a robust metal-framed operator control designed for secure multi-position switching in harsh industrial environments. These key switches prevent unauthorized access to sensitive operational modes on control panels. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (NEMA) (EF011959): 4X
  • Type of control element (EF006976): Key
  • Material front ring (EF005972): Metal
  • Degree of protection (IP), front side (EF003118): IP65
  • Switching function latching (EF007447): No
  • With front ring (EF006014): Yes
  • Spring-return (EF001407): Yes
  • Suitable for lighting (EF001142): No
  • Height opening (EF004778): 22 mm
  • Width opening (EF004565): 22 mm
  • Number of switch positions (EF000231): 3
  • Hole diameter (EF000079): 22 mm

More info

▲

8LM2TS390

Selector switch actuator key, Ø22mm 8LM series metal, 3 position, 1 - 0 < 2. Withdral at 1

Technical specifications

Type of actuator:
1 - 0 < 2, key extraction in 1
Order code8LM2TS390
Weight [g]78.6
Qty. per package10
Multiple qty. of packs per order10
Package dimensions [mm]150X060X048
Volume [cm³]43.2
Bar code [EAN13]8013975045671
HS Code85365080

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
