View larger
Images are for illustrative purposes only. Please refer to data sheet for details

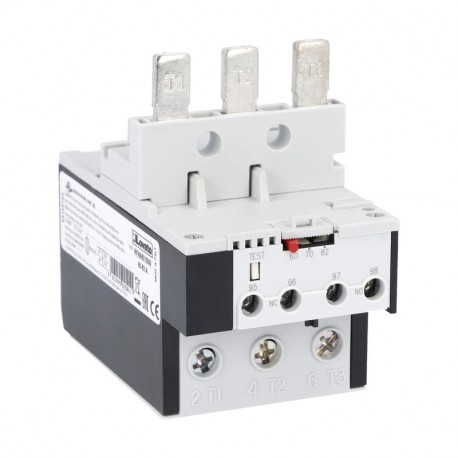

RFNA828200 LOVATO MOTOR PROTECTION RELAY, NON PHASE FAILURE / NON SINGLE PHASE SENSITIVE. THREE POLE (THREE ..
RFNA828200
828200
LOVATO ELECTRIC
1 Pcs.
MOTOR PROTECTION RELAY, NON PHASE FAILURE / NON SINGLE PHASE SENSITIVE. THREE POLE (THREE PHASE), AUTOMATIC RESETTING. DIRECT MOUNTING ON BF40 - BF80 CONTACTORS, 60...82A
TH.OVERLOAD REL.60-82A BF40-80 AUT NO PS
Motor protection relay, non phase failure/non single-phase sensitive. Three-pole (three-phase), automatic resetting. Direct mounting on BF40 - BF94 contactors, 60...82A
Automation > Thermal overload relay
Motor protection relays - LOVATO ELECTRIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲RFNA828200
Motor protection relay, non phase failure/non single-phase sensitive. Three-pole (three-phase), automatic resetting. Direct mounting on BF40 - BF94 contactors, 60...82A
Technical specifications
- Type of product:
- Thermal overload relays
- Operational current [A]:
- 60...82
- Reset mode:
- Automatic
- For contactor series:
- BF
- Type:
- Non phase failure / Non single-phase sensitive
| Order code | RFNA828200 |
|---|---|
| Weight [g] | 368 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 097X065X090 |
| Volume [cm³] | 567 |
| Bar code [EAN13] | 8013975225011 |
| HS Code | 85364900 |
| Feature Name | Feature Value |
|---|---|
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Release class (EF006668) | CLASS 10 A |
| Mounting method (EF000003) | Direct attachment |
| Adjustable current range (EF008211) | 60 A |
| Reset function push-button (EF011942) | No |
| Reset function automatic (EF011941) | Yes |
| Reset function input (EF011940) | No |
| Max. rated operation voltage Ue (EF007357) | 690 V |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 1 |
| Number of auxiliary contacts as normally open contact (EF001376) | 1 |
