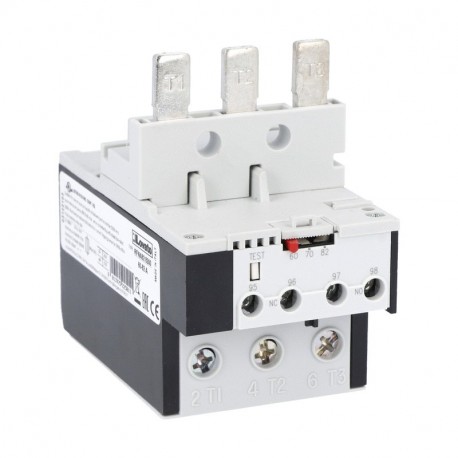

LOVATO ELECTRIC RFNA825000 RFNA825000 LOVATO MOTOR PROTECTION RELAY, NON PHASE FAILURE / NON SINGLE PHASE SENSITIVE. THREE POLE (THREE .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

RFNA825000 LOVATO MOTOR PROTECTION RELAY, NON PHASE FAILURE / NON SINGLE PHASE SENSITIVE. THREE POLE (THREE ..

RFNA825000

825000

LOVATO ELECTRIC

1 Pcs.

MOTOR PROTECTION RELAY, NON PHASE FAILURE / NON SINGLE PHASE SENSITIVE. THREE POLE (THREE PHASE), AUTOMATIC RESETTING. DIRECT MOUNTING ON BF40 - BF80 CONTACTORS, 35...50A TH.OVERLOAD REL.35-50A BF40-80 AUT NO PS Motor protection relay, non phase failure/non single-phase sensitive. Three-pole (three-phase), automatic resetting. Direct mounting on BF40 - BF94 contactors, 35...50A

Automation > Thermal overload relay
Motor protection relays - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Lovato Electric RFNA825000 is a thermal overload relay deployed in three-phase electrical systems to protect motors from excessive current draws without phase failure sensitivity. Industrial motor starters utilize these components to safeguard equipment from operational overloads and thermal wear. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Release class (EF006668): CLASS 10 A
  • Mounting method (EF000003): Direct attachment
  • Adjustable current range (EF008211): 35 A
  • Reset function push-button (EF011942): No
  • Reset function automatic (EF011941): Yes
  • Reset function input (EF011940): No
  • Max. rated operation voltage Ue (EF007357): 690 V

More info

▲

RFNA825000

Motor protection relay, non phase failure/non single-phase sensitive. Three-pole (three-phase), automatic resetting. Direct mounting on BF40 - BF94 contactors, 35...50A

Technical specifications

Type of product:
Thermal overload relays
Operational current [A]:
35...50
Reset mode:
Automatic
For contactor series:
BF
Type:
Non phase failure / Non single-phase sensitive
Type of mounting:
Direct mounting on BF40... BF94…
Order codeRFNA825000
Weight [g]368
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]097X065X090
Volume [cm³]567
Bar code [EAN13]8013975224991
HS Code85364900
