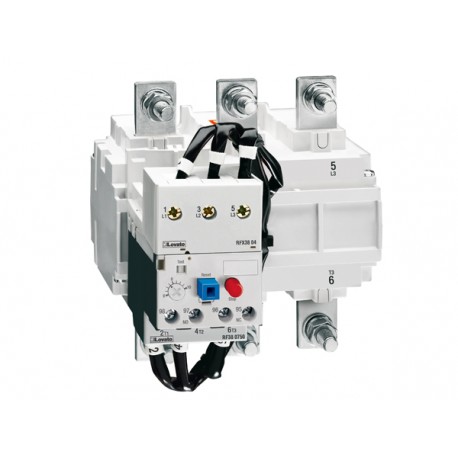

LOVATO ELECTRIC RFN420420 RFN420420 LOVATO MOTOR PROTECTION RELAY, NON PHASE FAILURE / NON SINGLE PHASE SENSITIVE. THREE POLE (THREE P.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

RFN420420 LOVATO MOTOR PROTECTION RELAY, NON PHASE FAILURE / NON SINGLE PHASE SENSITIVE. THREE POLE (THREE P..

RFN420420

420420

LOVATO ELECTRIC

1 Pcs.

MOTOR PROTECTION RELAY, NON PHASE FAILURE / NON SINGLE PHASE SENSITIVE. THREE POLE (THREE PHASE), MANUAL OR AUTOMATIC RESETTING, 250…420A T/O RELAY 250-420A MAN-AUTO Motor protection relay, non phase failure/non single-phase sensitive. Three-pole (three-phase), manual or automatic resetting, 250...420A MOTOR PROTECTION RELAY, NON-PHASE SENSITIVE, MANUAL OR AUTOMATIC RESET, 250...420A

Automation > Thermal overload relay
Motor protection relays - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Heavy-duty industrial applications rely on units like the Lovato Electric RFN420420 motor protection relay to prevent thermal damage in large three-phase AC motors. The component monitors operational loads and triggers contactor drop-outs during extended overcurrent states.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Release class (EF006668): CLASS 10 A
  • Mounting method (EF000003): Direct attachment/single positioning
  • Adjustable current range (EF008211): 250 A
  • Reset function push-button (EF011942): Yes
  • Reset function automatic (EF011941): Yes
  • Reset function input (EF011940): No
  • Max. rated operation voltage Ue (EF007357): 1000 V

More info

▲

RFN420420

Motor protection relay, non phase failure/non single-phase sensitive. Three-pole (three-phase), manual or automatic resetting, 250...420A

Technical specifications

Type of product:
Thermal overload relays
Operational current [A]:
250...420
Reset mode:
Manual or automatic
For contactor series:
B
Type:
Non phase failure / Non single-phase sensitive
Type of mounting:
Screw
Order codeRFN420420
Weight [g]2633
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]150X152X178
Volume [cm³]4058.4
Bar code [EAN13]8013975169018
HS Code85364900

620.46 £


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
