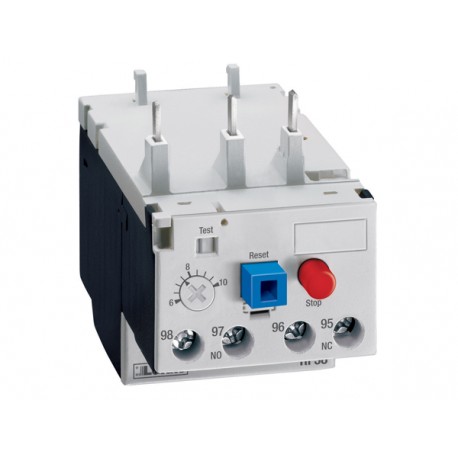

LOVATO ELECTRIC RFN383800 RFN383800 LOVATO MOTOR PROTECTION RELAY, NON PHASE FAILURE / NON SINGLE PHASE SENSITIVE. THREE POLE (THREE P.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

RFN383800 LOVATO MOTOR PROTECTION RELAY, NON PHASE FAILURE / NON SINGLE PHASE SENSITIVE. THREE POLE (THREE P..

RFN383800

383800

LOVATO ELECTRIC

1 Pcs.

MOTOR PROTECTION RELAY, NON PHASE FAILURE / NON SINGLE PHASE SENSITIVE. THREE POLE (THREE PHASE), MANUAL OR AUTOMATIC RESETTING. DIRECT MOUNTING ON BF09 - BF38 CONTACTORS, 32…38A T/O RELAY 32-38A MAN/AUTO Motor protection relay, non phase failure/non single-phase sensitive. Three-pole (three-phase), manual or automatic resetting. Direct mounting on BF09 - BF38 contactors, 32...38A

Automation > Thermal overload relay
Motor protection relays - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

RFN383800

Motor protection relay, non phase failure/non single-phase sensitive. Three-pole (three-phase), manual or automatic resetting. Direct mounting on BF09 - BF38 contactors, 32...38A

Technical specifications

Type of product:
Thermal overload relays
Operational current [A]:
32...38
Reset mode:
Manual or automatic
For contactor series:
BF
Type:
Non phase failure / Non single-phase sensitive
Type of mounting:
Direct mounting on BF09… BF38…
Order codeRFN383800
Weight [g]160
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]065X046X090
Volume [cm³]269.1
Bar code [EAN13]8013975169681
HS Code85364900

111.39 £


ETIM for RFN383800 Low-voltage industrial controls and switchgear (EC000106)
Feature Name Feature Value
Type of electrical connection of main circuit (EF006819) Screw connection
Release class (EF006668) CLASS 10 A
Mounting method (EF000003) Direct attachment
Adjustable current range (EF008211) 32 A
Reset function push-button (EF011942) Yes
Reset function automatic (EF011941) Yes
Reset function input (EF011940) No
Max. rated operation voltage Ue (EF007357) 690 V
Number of auxiliary contacts as change-over contact (EF003531) 0
Number of auxiliary contacts as normally closed contact (EF001377) 1
Number of auxiliary contacts as normally open contact (EF001376) 1

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
