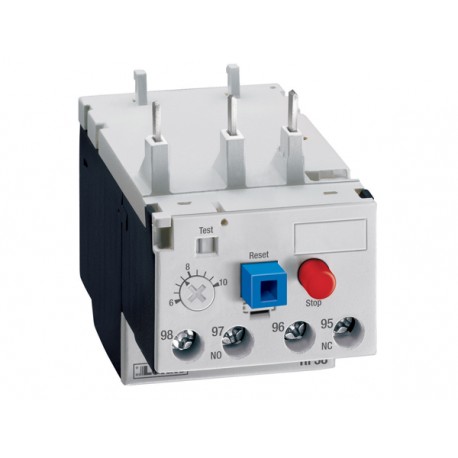

LOVATO ELECTRIC RFN382500 RFN382500 LOVATO MOTOR PROTECTION RELAY, NON PHASE FAILURE / NON SINGLE PHASE SENSITIVE. THREE POLE (THREE P.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

RFN382500 LOVATO MOTOR PROTECTION RELAY, NON PHASE FAILURE / NON SINGLE PHASE SENSITIVE. THREE POLE (THREE P..

RFN382500

382500

LOVATO ELECTRIC

1 Pcs.

MOTOR PROTECTION RELAY, NON PHASE FAILURE / NON SINGLE PHASE SENSITIVE. THREE POLE (THREE PHASE), MANUAL OR AUTOMATIC RESETTING. DIRECT MOUNTING ON BF09 - BF38 CONTACTORS, 20…25A T/O RELAY 20-25A MAN/AUTO Motor protection relay, non phase failure/non single-phase sensitive. Three-pole (three-phase), manual or automatic resetting. Direct mounting on BF09 - BF38 contactors, 20...25A MOTOR PROTECTION RELAY, NOT SENSITIVE TO PHASE FAILURE, MANUAL OR AUTOMATIC RESET. DIRECT MOUNTING ON BF09 CONTACTORS... BF38, 20...25A

Automation > Thermal overload relay
Motor protection relays - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Lovato Electric RFN382500 motor protection relay provides essential current monitoring for three-phase electric motors to prevent thermal damage from overloads. Devices of this type mount directly to contactors in industrial switchgear to interrupt power during prolonged overcurrent states. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Release class (EF006668): CLASS 10 A
  • Mounting method (EF000003): Direct attachment
  • Adjustable current range (EF008211): 20 A
  • Reset function push-button (EF011942): Yes
  • Reset function automatic (EF011941): Yes
  • Reset function input (EF011940): No
  • Max. rated operation voltage Ue (EF007357): 690 V

More info

▲

RFN382500

Motor protection relay, non phase failure/non single-phase sensitive. Three-pole (three-phase), manual or automatic resetting. Direct mounting on BF09 - BF38 contactors, 20...25A

Technical specifications

Type of product:
Thermal overload relays
Operational current [A]:
20...25
Reset mode:
Manual or automatic
For contactor series:
BF
Type:
Non phase failure / Non single-phase sensitive
Type of mounting:
Direct mounting on BF09… BF38…
Order codeRFN382500
Weight [g]164
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]065X046X090
Volume [cm³]269.1
Bar code [EAN13]8013975169704
HS Code85364900

71.66 £
