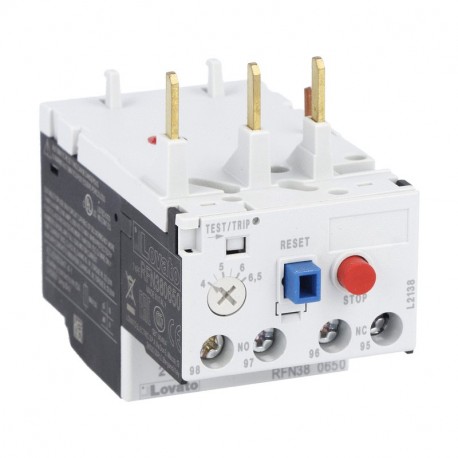

LOVATO ELECTRIC RFN380250 RFN380250 LOVATO MOTOR PROTECTION RELAY, NON PHASE FAILURE / NON SINGLE PHASE SENSITIVE. THREE POLE (THREE P.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

RFN380250 LOVATO MOTOR PROTECTION RELAY, NON PHASE FAILURE / NON SINGLE PHASE SENSITIVE. THREE POLE (THREE P..

RFN380250

380250

LOVATO ELECTRIC

1 Pcs.

MOTOR PROTECTION RELAY, NON PHASE FAILURE / NON SINGLE PHASE SENSITIVE. THREE POLE (THREE PHASE), MANUAL OR AUTOMATIC RESETTING. DIRECT MOUNTING ON BF09 - BF38 CONTACTORS, 1.6…2.5A T/O RELAY 1,6-2,5A MAN/AUTO Motor protection relay, non phase failure/non single-phase sensitive. Three-pole (three-phase), manual or automatic resetting. Direct mounting on BF09 - BF38 contactors, 1.6...2.5A

Automation > Thermal overload relay
Motor protection relays - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Motor protection relay safeguards three-phase industrial motors from thermal overloads by opening connected control circuits when excessive current is detected. This Lovato Electric component features screw connections for secure panel wiring.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Release class (EF006668): CLASS 10 A
  • Mounting method (EF000003): Direct attachment
  • Adjustable current range (EF008211): 1.6 A
  • Reset function push-button (EF011942): Yes
  • Reset function automatic (EF011941): Yes
  • Reset function input (EF011940): No
  • Max. rated operation voltage Ue (EF007357): 690 V

More info

▲

RFN380250

Motor protection relay, non phase failure/non single-phase sensitive. Three-pole (three-phase), manual or automatic resetting. Direct mounting on BF09 - BF38 contactors, 1.6...2.5A

Technical specifications

Type of product:
Thermal overload relays
Operational current [A]:
1.6...2.5
Reset mode:
Manual or automatic
For contactor series:
BF
Type:
Non phase failure / Non single-phase sensitive
Type of mounting:
Direct mounting on BF09… BF38…
Order codeRFN380250
Weight [g]150
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]065X046X090
Volume [cm³]269.1
Bar code [EAN13]8013975169773
HS Code85364900

63.33 £
