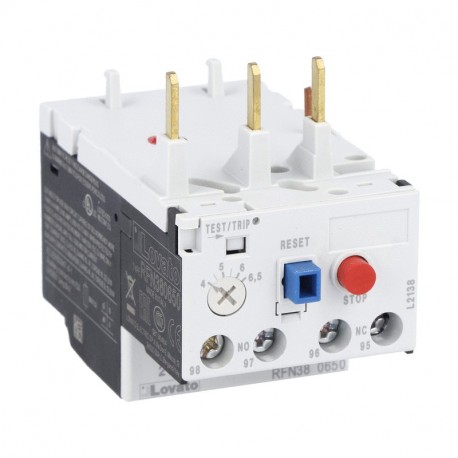

LOVATO ELECTRIC RFN380063 RFN380063 LOVATO MOTOR PROTECTION RELAY, NON PHASE FAILURE / NON SINGLE PHASE SENSITIVE. THREE POLE (THREE P.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

RFN380063 LOVATO MOTOR PROTECTION RELAY, NON PHASE FAILURE / NON SINGLE PHASE SENSITIVE. THREE POLE (THREE P..

RFN380063

380063

LOVATO ELECTRIC

1 Pcs.

MOTOR PROTECTION RELAY, NON PHASE FAILURE / NON SINGLE PHASE SENSITIVE. THREE POLE (THREE PHASE), MANUAL OR AUTOMATIC RESETTING. DIRECT MOUNTING ON BF09 - BF38 CONTACTORS, 0.40…0.63A T/O RELAY 0,4-0,63A MAN/AUTO Motor protection relay, non phase failure/non single-phase sensitive. Three-pole (three-phase), manual or automatic resetting. Direct mounting on BF09 - BF38 contactors, 0.40...0.63A MOTOR PROTECTION RELAY, NOT SENSITIVE TO PHASE FAILURE, MANUAL OR AUTOMATIC RESET. DIRECT MOUNTING ON BF09 CONTACTORS... BF38, 0.40...0.63A

Automation > Thermal overload relay
Motor protection relays - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Lovato Electric RFN380063 is a three-pole motor protection relay built to defend industrial electrical systems against harmful thermal overloads. These components integrate into motor control circuits to interrupt power flow when excessive current threatens internal motor components.

Please note that pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Release class (EF006668): CLASS 10 A
  • Mounting method (EF000003): Direct attachment
  • Adjustable current range (EF008211): 0.4 A
  • Reset function push-button (EF011942): Yes
  • Reset function automatic (EF011941): Yes
  • Reset function input (EF011940): No
  • Max. rated operation voltage Ue (EF007357): 690 V

More info

▲

RFN380063

Motor protection relay, non phase failure/non single-phase sensitive. Three-pole (three-phase), manual or automatic resetting. Direct mounting on BF09 - BF38 contactors, 0.40...0.63A

Technical specifications

Type of product:
Thermal overload relays
Operational current [A]:
0.4...0.63
Reset mode:
Manual or automatic
For contactor series:
BF
Type:
Non phase failure / Non single-phase sensitive
Type of mounting:
Direct mounting on BF09… BF38…
Order codeRFN380063
Weight [g]160
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]065X046X090
Volume [cm³]269.1
Bar code [EAN13]8013975169803
HS Code85364900

63.33 £
