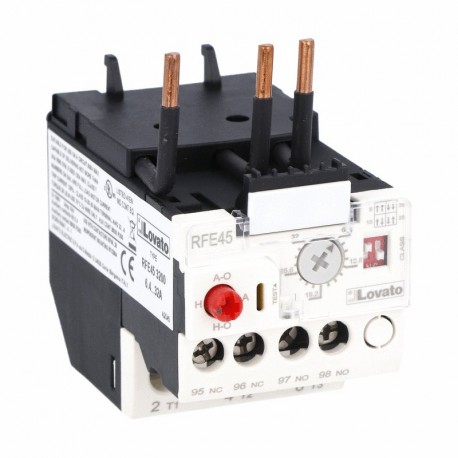

RFE450800 LOVATO ELECTRONIC THERMAL OVERLOAD RELAYS PHASE FAILURE / SINGLE PHASE SENSITIVE. THREE POLE (THRE..
RFE450800
450800
LOVATO ELECTRIC
1 Pcs.
ELECTRONIC THERMAL OVERLOAD RELAYS PHASE FAILURE / SINGLE PHASE SENSITIVE. THREE POLE (THREE PHASE), MANUAL OR AUTOMATIC RESETTING, 1,6...8A
ELECTRONIC OVERLOAD RELAY 1,6..8A
Electronic thermal overload relay, phase failure/single-phase sensitive. Three-pole (three-phase), manual or automatic resetting, 1.6...8A
Automation > Electronic overload relay
Motor protection relays - LOVATO ELECTRIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲RFE450800
Electronic thermal overload relay, phase failure/single-phase sensitive. Three-pole (three-phase), manual or automatic resetting, 1.6...8A
Technical specifications
- Type of product:
- Electronic thermal overload relays
- Operational current [A]:
- 1.6...8
- Reset mode:
- Manual or automatic
- For contactor series:
- BF
- Type:
- Phase failure / Single-phase sensitive
- Type of mounting:
- Direct mounting on BF09… BF38…
| Order code | RFE450800 |
|---|---|
| Weight [g] | 208.3 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 090X078X050 |
| Volume [cm³] | 351 |
| Bar code [EAN13] | 8013975230244 |
| HS Code | 85364900 |
108.34 £
| Feature Name | Feature Value |
|---|---|
| Voltage type for actuating (EF008242) | EV009206 |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Release class (EF006668) | Adjustable |
| Mounting method (EF000003) | Direct attachment |
| Adjustable current range (EF008211) | 1.6 A |
| Reset function push-button (EF011942) | Yes |
| Reset function automatic (EF011941) | Yes |
| Reset function input (EF011940) | No |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 1 |
| Number of auxiliary contacts as normally open contact (EF001376) | 1 |
