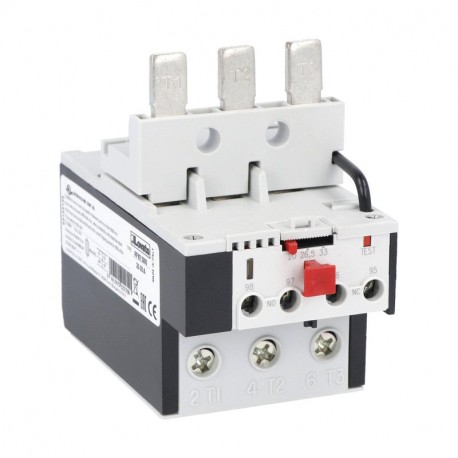

LOVATO ELECTRIC RFA826500 RFA826500 LOVATO MOTOR PROTECTION RELAY, PHASE FAILURE / SINGLE PHASE SENSITIVE. THREE POLE (THREE PHASE), A.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

RFA826500 LOVATO MOTOR PROTECTION RELAY, PHASE FAILURE / SINGLE PHASE SENSITIVE. THREE POLE (THREE PHASE), A..

RFA826500

826500

LOVATO ELECTRIC

1 Pcs.

MOTOR PROTECTION RELAY, PHASE FAILURE / SINGLE PHASE SENSITIVE. THREE POLE (THREE PHASE), AUTOMATIC RESETTING. DIRECT MOUNTING ON BF40 - BF80 CONTACTORS, 46...65A TH.OVERLOAD RELAY 46-65A BF40-80 AUT PS Motor protection relay, phase failure/single-phase sensitive. Three-pole (three-phase), automatic resetting. Direct mounting on BF40 - BF94 contactors, 46...65A MOTOR PROTECTION RELAY, PHASE FAILURE SENSITIVE, AUTOMATIC RESET. DIRECT MOUNTING ON BF40 CONTACTORS... BF94, 46...65A

Automation > Thermal overload relay
Motor protection relays - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Lovato Electric RFA826500 is a phase-failure sensitive motor protection relay engineered for secure three-phase electrical installations. It detects current anomalies and phase losses to disconnect machinery before thermal overload damages sensitive windings. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Release class (EF006668): CLASS 10 A
  • Mounting method (EF000003): Direct attachment
  • Adjustable current range (EF008211): 46 A
  • Reset function push-button (EF011942): No
  • Reset function automatic (EF011941): Yes
  • Reset function input (EF011940): No
  • Max. rated operation voltage Ue (EF007357): 690 V

More info

▲

RFA826500

Motor protection relay, phase failure/single-phase sensitive. Three-pole (three-phase), automatic resetting. Direct mounting on BF40 - BF94 contactors, 46...65A

Technical specifications

Type of product:
Thermal overload relays
Operational current [A]:
46...65
Reset mode:
Automatic
For contactor series:
BF
Type:
Phase failure / Single-phase sensitive
Type of mounting:
Direct mounting on BF40... BF94…
Order codeRFA826500
Weight [g]380
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]097X065X090
Volume [cm³]567
Bar code [EAN13]8013975224922
HS Code85364900
