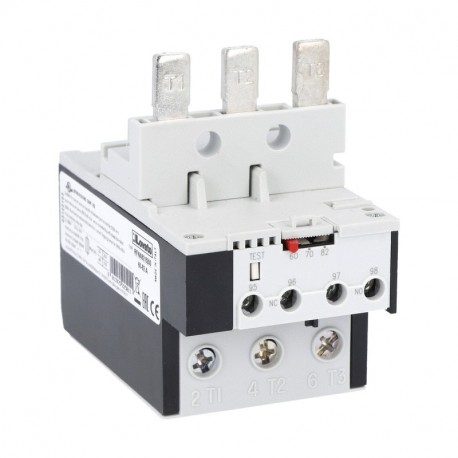

LOVATO ELECTRIC RFA824200 RFA824200 LOVATO MOTOR PROTECTION RELAY, PHASE FAILURE / SINGLE PHASE SENSITIVE. THREE POLE (THREE PHASE), A.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

RFA824200 LOVATO MOTOR PROTECTION RELAY, PHASE FAILURE / SINGLE PHASE SENSITIVE. THREE POLE (THREE PHASE), A..

RFA824200

824200

LOVATO ELECTRIC

1 Pcs.

MOTOR PROTECTION RELAY, PHASE FAILURE / SINGLE PHASE SENSITIVE. THREE POLE (THREE PHASE), AUTOMATIC RESETTING. DIRECT MOUNTING ON BF40 - BF80 CONTACTORS, 28...42A TH.OVERLOAD RELAY 28-42A BF40-80 AUT PS Motor protection relay, phase failure/single-phase sensitive. Three-pole (three-phase), automatic resetting. Direct mounting on BF40 - BF94 contactors, 28...42A MOTOR PROTECTION RELAY, PHASE FAILURE SENSITIVE, AUTOMATIC RESET. DIRECT MOUNTING ON BF40 CONTACTORS... BF94, 28...42A

Automation > Thermal overload relay
Motor protection relays - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

RFA824200

Motor protection relay, phase failure/single-phase sensitive. Three-pole (three-phase), automatic resetting. Direct mounting on BF40 - BF94 contactors, 28...42A

Technical specifications

Type of product:
Thermal overload relays
Operational current [A]:
28...42
Reset mode:
Automatic
For contactor series:
BF
Type:
Phase failure / Single-phase sensitive
Type of mounting:
Direct mounting on BF40... BF94…
Order codeRFA824200
Weight [g]375
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]097X065X090
Volume [cm³]567
Bar code [EAN13]8013975224908
HS Code85364900

137.48 £


ETIM for RFA824200 Low-voltage industrial controls and switchgear (EC000106)
Feature Name Feature Value
Type of electrical connection of main circuit (EF006819) Screw connection
Release class (EF006668) CLASS 10 A
Mounting method (EF000003) Direct attachment
Adjustable current range (EF008211) 28 A
Reset function push-button (EF011942) No
Reset function automatic (EF011941) Yes
Reset function input (EF011940) No
Max. rated operation voltage Ue (EF007357) 690 V
Number of auxiliary contacts as change-over contact (EF003531) 0
Number of auxiliary contacts as normally closed contact (EF001377) 1
Number of auxiliary contacts as normally open contact (EF001376) 1

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
