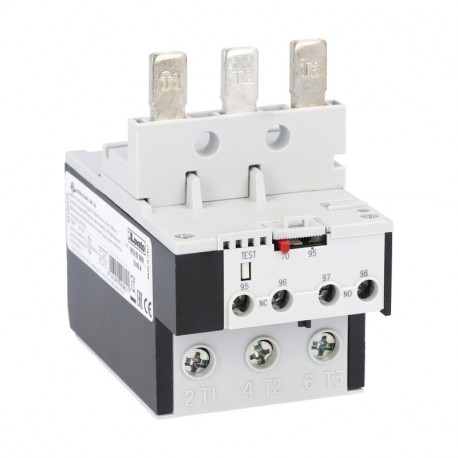

RFA823300 LOVATO MOTOR PROTECTION RELAY, PHASE FAILURE / SINGLE PHASE SENSITIVE. THREE POLE (THREE PHASE), A..
RFA823300
823300
LOVATO ELECTRIC
1 Pcs.
MOTOR PROTECTION RELAY, PHASE FAILURE / SINGLE PHASE SENSITIVE. THREE POLE (THREE PHASE), AUTOMATIC RESETTING. DIRECT MOUNTING ON BF40 - BF80 CONTACTORS, 20...33A
TH.OVERLOAD RELAY 20-33A BF40-80 AUT PS
Motor protection relay, phase failure/single-phase sensitive. Three-pole (three-phase), automatic resetting. Direct mounting on BF40 - BF94 contactors, 20...33A
Automation > Thermal overload relay
Motor protection relays - LOVATO ELECTRIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲RFA823300
Motor protection relay, phase failure/single-phase sensitive. Three-pole (three-phase), automatic resetting. Direct mounting on BF40 - BF94 contactors, 20...33A
Technical specifications
- Type of product:
- Thermal overload relays
- Operational current [A]:
- 20...33
- Reset mode:
- Automatic
- For contactor series:
- BF
- Type:
- Phase failure / Single-phase sensitive
- Type of mounting:
- Direct mounting on BF40... BF94…
| Order code | RFA823300 |
|---|---|
| Weight [g] | 375 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 097X065X090 |
| Volume [cm³] | 567 |
| Bar code [EAN13] | 8013975224892 |
| HS Code | 85364900 |
126.76 £
| Feature Name | Feature Value |
|---|---|
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Release class (EF006668) | CLASS 10 A |
| Mounting method (EF000003) | Direct attachment |
| Adjustable current range (EF008211) | 20 A |
| Reset function push-button (EF011942) | No |
| Reset function automatic (EF011941) | Yes |
| Reset function input (EF011940) | No |
| Max. rated operation voltage Ue (EF007357) | 690 V |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 1 |
| Number of auxiliary contacts as normally open contact (EF001376) | 1 |
