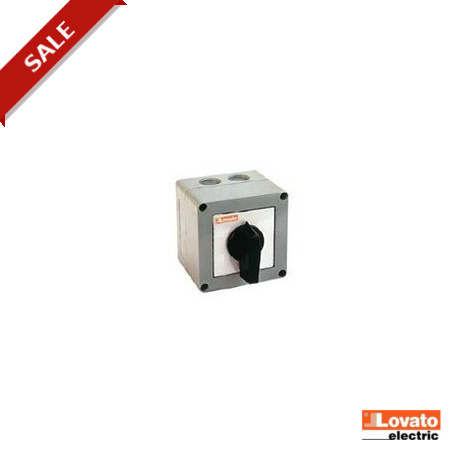

LOVATO ELECTRIC 7GN1226P 7GN1226P GN1226P LOVATO Tripolar with GN26 return investor Model 12A P 75x75 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

7GN1226P GN1226P LOVATO Tripolar with GN26 return investor Model 12A P 75x75

7GN1226P

GN1226P

LOVATO ELECTRIC

1 Pcs.

Tripolar with GN26 return investor Model 12A P 75x75 Return Inverter III GN26 16A Mod. P 75x75 Enclosed rotary cam switch 7GN series, 3-phase motor reversing switch with spring return 16A in plastic enclosure 75X75mm with black handle

Automation > Selector switch, complete
Rotary cam switches - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Lovato tripolar switch with return investor manages three-phase circuit inversion and safe load routing within industrial control centers. The spring-return mechanism ensures precise temporary state changes when actuated by operators. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of control element (EF006976): Short thumb-grip
  • Material front ring (EF005972): Plastic
  • Degree of protection (IP) (EF005474): IP65
  • Type of electric connection (EF003961): Screw connection
  • With front ring (EF006014): No
  • With light source (EF005905): No
  • Spring-return (EF001407): Yes
  • Suitable for lighting (EF001142): No
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 3
  • Number of contacts as normally closed contact (EF008255): 0
  • Number of switch positions (EF000231): 3

More info

▲

7GN1226P

Enclosed rotary cam switch 7GN series, 3-phase motor reversing switch with spring return 16A in plastic enclosure 75X75mm with black handle

Technical specifications

Type of product:
Motor starting switches
Switching diagram:
26 - 3-phase motor reversing switch with spring return
IEC Conventional free air thermal current Ith [A]:
16
Mounting form:
P - Plastic enclosure with black handle
Series:
7GN - round-shaped contact block
Order code7GN1226P
Weight [g]260
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]068X068X105
Volume [cm³]485.52
Bar code [EAN13]3850144004306
HS Code85365080
