View larger
Images are for illustrative purposes only. Please refer to data sheet for details

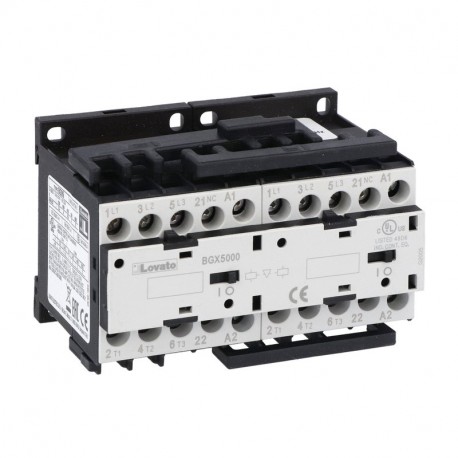

11BGR0901A400 BGR0901A400 LOVATO REVERSING CONTACTOR ASSEMBLY, AC COIL, EXTERNAL INTERLOCK WITH POWER AND AU..
11BGR0901A400
BGR0901A400
LOVATO ELECTRIC
1 Pcs.
REVERSING CONTACTOR ASSEMBLY, AC COIL, EXTERNAL INTERLOCK WITH POWER AND AUXILIARY WIRING, 9A AC3 IN AC, 4KW. COIL VOLTAGE 400VAC 50/60HZ
9A AC3 Inverter Encl. External, Conex. Pot./Cont. 400V AC
Reversing contactor assembly, AC coil, external interlock with power and auxiliary wiring, 9A AC3 in AC, 4kW. Coil voltage 400VAC 50/60Hz
Automation > Motor starter/Motor starter combination
Electromechanical starters - LOVATO ELECTRIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲11BGR0901A400
Reversing contactor assembly, AC coil, external interlock with power and auxiliary wiring, 9A AC3 in AC, 4kW. Coil voltage 400VAC 50/60Hz
Technical specifications
- Type of product:
- Reversing contactor assemblies
- UL/CSA horsepower ratings 480V [HP]:
- 5
- Type:
- Open frame, with external interlock with power and auxiliary wiring
- Type of coil:
- AC coil
- Contactor coil voltage:
- 400VAC 50/60HZ
| Order code | 11BGR0901A400 |
|---|---|
| Weight [g] | 394 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 097X065X090 |
| Volume [cm³] | 567.45 |
| Bar code [EAN13] | 8013975083406 |
| HS Code | 85365080 |
216.67 £
| Feature Name | Feature Value |
|---|---|
| Degree of protection (NEMA) (EF011959) | Other |
| Type of motor starter (EF009598) | Reversing starter |
| Voltage type for actuating (EF008242) | AC |
| Type of electrical connection for auxiliary- and control current circuit (EF006979) | Screw connection |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Degree of protection (IP) (EF005474) | IP20 |
| Rated control supply voltage AC 60 Hz (EF003979) | 400 V |
| Rated control supply voltage AC 50 Hz (EF003978) | 400 V |
| Supporting protocol for SafetyBUS p (EF007527) | No |
| Supporting protocol for PROFIsafe (EF007526) | No |
| Supporting protocol for PROFINET IO (EF007525) | No |
| Supporting protocol for PROFINET CBA (EF007524) | No |
| Supporting protocol for Foundation Fieldbus (EF007522) | No |
| Supporting protocol for EtherNet/IP (EF007521) | No |
| Supporting protocol for DeviceNet Safety (EF007520) | No |
| Supporting protocol for AS-Interface Safety at Work (EF007519) | No |
| With fuse (EF006693) | No |
| With short-circuit release (EF006691) | No |
| Supporting protocol for INTERBUS-Safety (EF006662) | No |
| Supporting protocol for SERCOS (EF006657) | No |
| Suitable for rail mounting (EF003972) | Yes |
| External reset possible (EF003426) | No |
| Supporting protocol for other bus systems (EF003062) | No |
| Supporting protocol for SUCONET (EF003060) | No |
| Supporting protocol for DeviceNet (EF003059) | No |
| Supporting protocol for Data-Highway (EF003058) | No |
| Supporting protocol for Modbus (EF003057) | No |
| Supporting protocol for INTERBUS (EF003054) | No |
| Supporting protocol for CAN (EF003053) | No |
| Supporting protocol for PROFIBUS (EF003052) | No |
| Supporting protocol for ASI (EF003051) | No |
| Supporting protocol for TCP/IP (EF003050) | No |
| Supporting protocol for LON (EF003017) | No |
| Suitable for emergency stop (EF001433) | No |
| With transformer (EF000278) | No |
| Rated conditional short-circuit current, type 2, 230 V (EF009606) | 50000 A |
| Rated conditional short-circuit current, type 2, 400 V (EF009605) | 50000 A |
| Ambient temperature, upper operating limit (EF009603) | 70 °C |
| Rated operation current at AC-3, 400 V (EF009602) | 9 A |
| Rated operation power at AC-3, 230 V, 3-phase (EF009599) | 2.2 kW |
| Number of indicator lights (EF001965) | 0 |
| Rated operation current Ie (EF001443) | 9 A |
| Number of auxiliary contacts as normally closed contact (EF001377) | 1 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Rated operation power at AC-3, 400 V (EF001364) | 4 kW |
| Depth (EF000049) | 62 mm |
| Height (EF000040) | 58 mm |
| Width (EF000008) | 88 mm |
