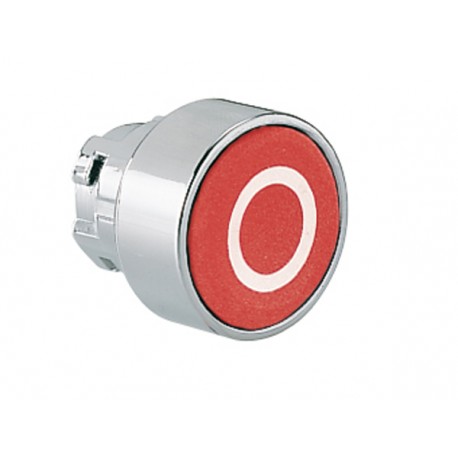

LOVATO ELECTRIC 8LM2TB1134 8LM2TB1134 LM2TB1134 LOVATO PUSHBUTTON ACTUATOR, SPRING RETURN, WITH SYMBOL, Ø22MM 8LM METAL SERIES, FLUSH, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

8LM2TB1134 LM2TB1134 LOVATO PUSHBUTTON ACTUATOR, SPRING RETURN, WITH SYMBOL, Ø22MM 8LM METAL SERIES, FLUSH, ..

8LM2TB1134

LM2TB1134

LOVATO ELECTRIC

1 Pcs.

PUSHBUTTON ACTUATOR, SPRING RETURN, WITH SYMBOL, Ø22MM 8LM METAL SERIES, FLUSH, STOP / RED Red Metal Grazing Button with STOP symbol Pushbutton actuator, spring return, with symbol, Ø22mm 8LM series metal, flush, STOP/Red

Automation > Front element for push button
Pushbuttons and selector switches - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Lovato Electric 8LM2TB1134 is a spring return pushbutton actuator from the 8LM metal series equipped with a flush red lens and standard mounting dimensions. Industrial control stations use these heavy-duty mechanical operators to execute manual control commands safely and reliably. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (NEMA), front side (EF011961): 4X
  • Construction type lens (EF006253): Round
  • Material front ring (EF005972): Metal
  • Degree of protection (IP), front side (EF003118): IP65
  • Colour button (EF000190): Red
  • Switching function latching (EF007447): No
  • With front ring (EF006014): Yes
  • With protective cover (EF005500): No
  • Labelled (EF001537): No
  • Spring-return (EF001407): Yes
  • Suitable for lighting (EF001142): No
  • Height opening (EF004778): 22 mm
  • Width opening (EF004565): 22 mm
  • Number of command positions (EF001372): 1
  • Hole diameter (EF000079): 22 mm

More info

▲

8LM2TB1134

Pushbutton actuator, spring return, with symbol, Ø22mm 8LM series metal, flush, STOP/Red

Technical specifications

Colour:
Red
Order code8LM2TB1134
Weight [g]33
Qty. per package10
Multiple qty. of packs per order10
Package dimensions [mm]150X060X038
Volume [cm³]34.2
Bar code [EAN13]8013975040331
HS Code85365080
