View larger
Images are for illustrative purposes only. Please refer to data sheet for details

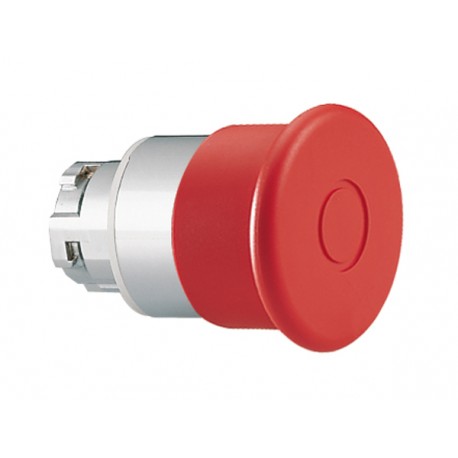

8LM2TB6244 LM2TB6244 LOVATO MUSHROOM HEAD PUSHBUTTON ACTUATOR, Ø22MM 8LM METAL SERIES, LATCH, PULL TO RELEAS..
8LM2TB6244
LM2TB6244
LOVATO ELECTRIC
2 Pcs.
MUSHROOM HEAD PUSHBUTTON ACTUATOR, Ø22MM 8LM METAL SERIES, LATCH, PULL TO RELEASE, Ø40MM. FOR NORMAL STOPPING. RED
RED MUSHROOM-HEAD PUSH/PULL PUSH-BUTTON
Mushroom head pushbutton actuator, Ø22mm 8LM series metal, latch, pull to release, Ø40mm. For normal stopping. Red
Automation > Emergency stop complete
Pushbuttons and selector switches - LOVATO ELECTRIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲8LM2TB6244
Mushroom head pushbutton actuator, Ø22mm 8LM series metal, latch, pull to release, Ø40mm. For normal stopping. Red
Technical specifications
- Colour:
- Red
| Order code | 8LM2TB6244 |
|---|---|
| Weight [g] | 111 |
| Qty. per package | 2 |
| Multiple qty. of packs per order | 2 |
| Package dimensions [mm] | 060X045X070 |
| Volume [cm³] | 94.5 |
| Bar code [EAN13] | 8013975051276 |
| HS Code | 85365080 |
| Feature Name | Feature Value |
|---|---|
| Degree of protection (NEMA) (EF011959) | 4X |
| Connection type auxiliary circuit (EF006820) | Other |
| Degree of protection (IP) (EF005474) | IP66 |
| Unlocking method (EF001403) | Pull-release |
| Mounting method (EF000003) | Surface mounting |
| With lighting (EF003829) | No |
| Number of contacts as normally open contact (EF008256) | 0 |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Diameter cap (EF001423) | 40 mm |
| Hole diameter (EF000079) | 22 mm |
