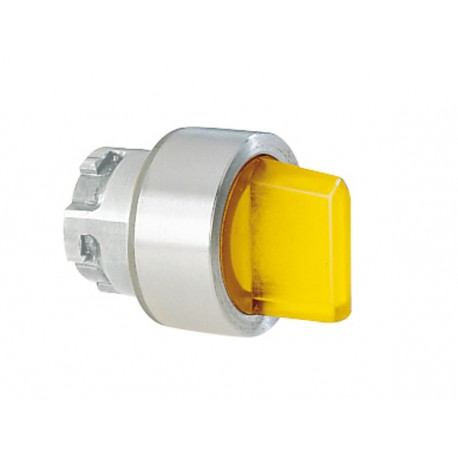

LOVATO ELECTRIC 8LM2TSL1304 8LM2TSL1304 LM2TSL1304 LOVATO ILLUMINATED SELECTOR SWITCH ACTUATOR, Ø22MM 8LM METAL SERIES, 3 POSITION, 1 0 .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

8LM2TSL1304 LM2TSL1304 LOVATO ILLUMINATED SELECTOR SWITCH ACTUATOR, Ø22MM 8LM METAL SERIES, 3 POSITION, 1 0 ..

8LM2TSL1304

LM2TSL1304

LOVATO ELECTRIC

1 Pcs.

ILLUMINATED SELECTOR SWITCH ACTUATOR, Ø22MM 8LM METAL SERIES, 3 POSITION, 1 - 0 - 2. RED Metallic Light Selector 3 positions "1-0-2" Fixed Red Illuminated selector switch actuator, Ø22mm 8LM series metal, 3 position, 1 - 0 - 2. Red

Automation > Front element for selector switch
Pushbuttons and selector switches - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An illuminated selector switch actuator offers multi-position circuit switching combined with visual light feedback for industrial automation panels. This Lovato Electric 8LM2TSL1304 unit features a thumb-grip operator for easy manual control. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (NEMA): 4X
  • Colour control element: Red
  • Colour indicator light cap: Red
  • Type of control element: Short thumb-grip
  • Material front ring: Metal
  • Degree of protection (IP), front side: IP65
  • Switching function latching: No
  • With front ring: Yes
  • Spring-return: Yes
  • Suitable for lighting: Yes
  • Height opening: 22 mm
  • Width opening: 22 mm
  • Number of switch positions: 3
  • Hole diameter: 22 mm

More info

▲

8LM2TSL1304

Illuminated selector switch actuator, Ø22mm 8LM series metal, 3 position, 1 - 0 - 2. Red

Technical specifications

Type of actuator:
1 - 0 - 2
Colour:
Red
Order code8LM2TSL1304
Weight [g]24.5
Qty. per package10
Multiple qty. of packs per order10
Package dimensions [mm]150X060X048
Volume [cm³]43.2
Bar code [EAN13]8013975042403
HS Code85365080

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
